Plans

Real plans, drawn the proper way.

These aren’t concept sketches. Every plan below is a complete Chimbuko set — dimensioned floor plans, elevations, photoreal views and a priced bill of quantities — generated from a conversational brief exactly the way yours will be. Photoreal views are shown as drawn. Plan sheets are deliberately obscured here — the dimensions, scale and title block arrive with the purchased file, clean and full-resolution.

All plansBungalowMaisonetteFlat Roof3-Bedroom4-BedroomHouse Plans for 50×100 ft Plots
Front view of the signature 4-bedroom flat-roof maisonette
The aspirational anchor

Signature 4-Bedroom Maisonette (Flat Roof)

4 bed (3 ensuite) · 229 m² · 2 storeys · DSQ + carport · est. KES 7.2M–9.2M

See the full set
Front view of the classic 3-bedroom hip-roof bungalow
Most asked for

Classic 3-Bedroom Bungalow (Hip Roof)

3 bed (master ensuite) · 146 m² · open kitchen/dining · est. KES 5.2M–6.6M

See the full set

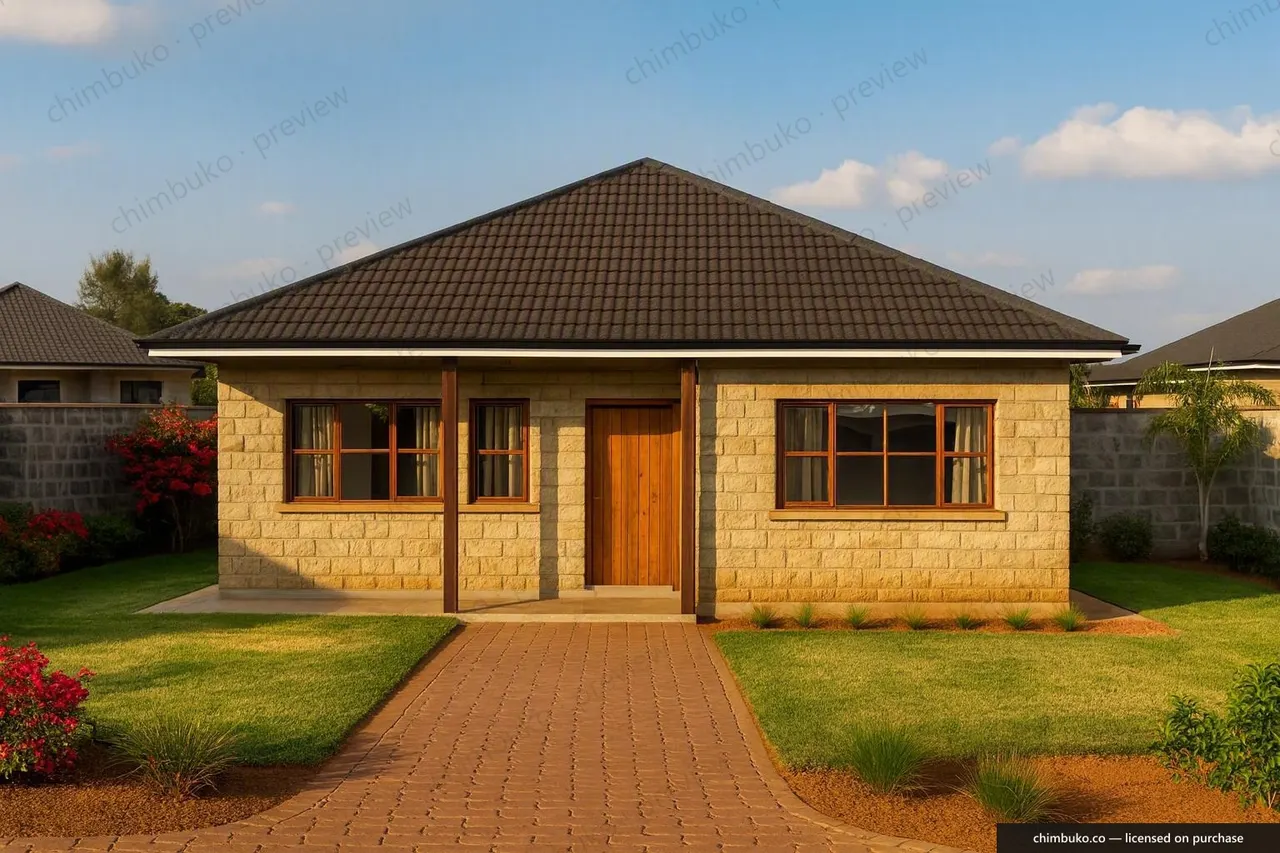

Front view of the classic 2-bedroom hip-roof starter bungalow
The starter home

Classic 2-Bedroom Starter Bungalow (Hip Roof)

2 bed (master ensuite) · 114.8 m² · guest WC · open kitchen/dining · est. KES 4.4M–5.6M

See the full set

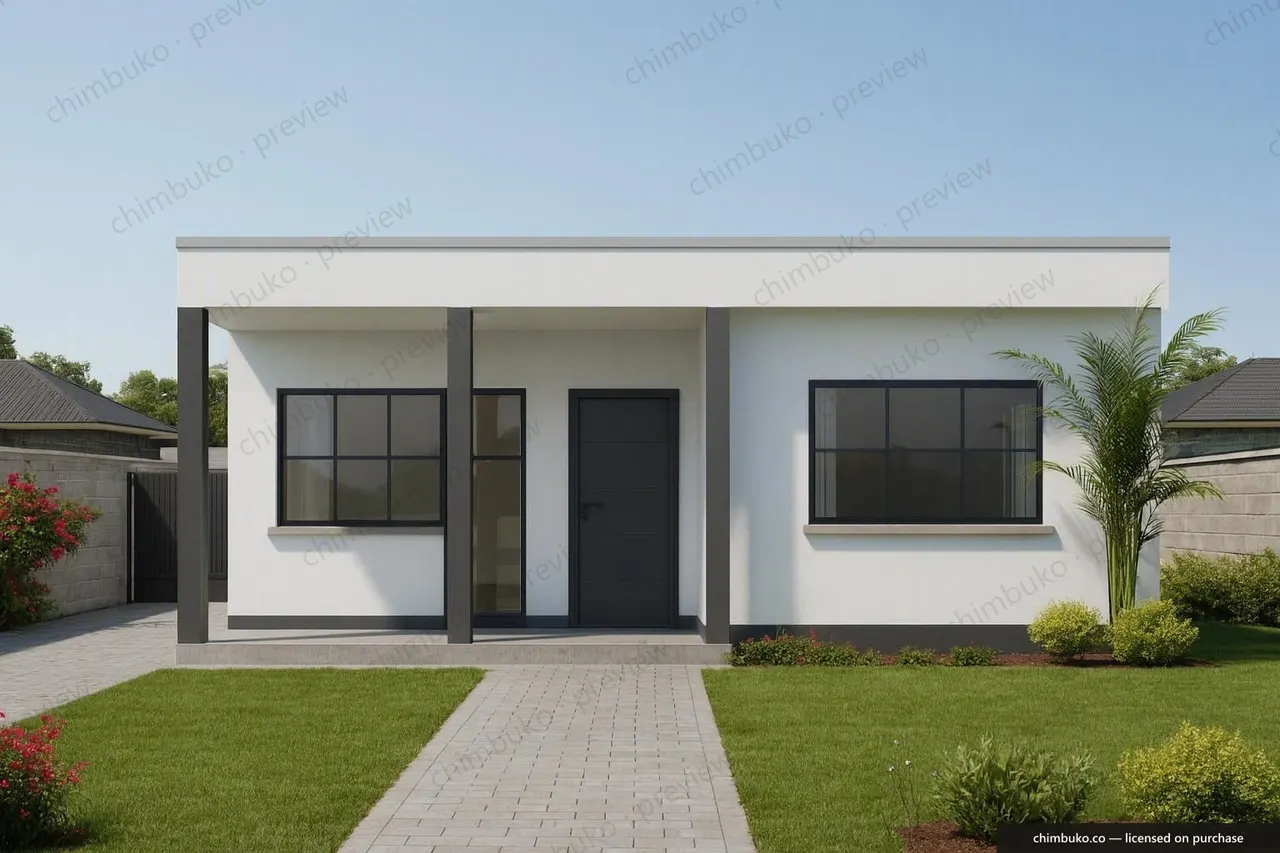

Front view of the modern 2-bedroom flat-roof bungalow
The modern starter

Modern 2-Bedroom Bungalow (Flat Roof)

2 bed (master ensuite) · 114.8 m² · guest WC · flat roof · est. KES 4.5M–5.8M

See the full set

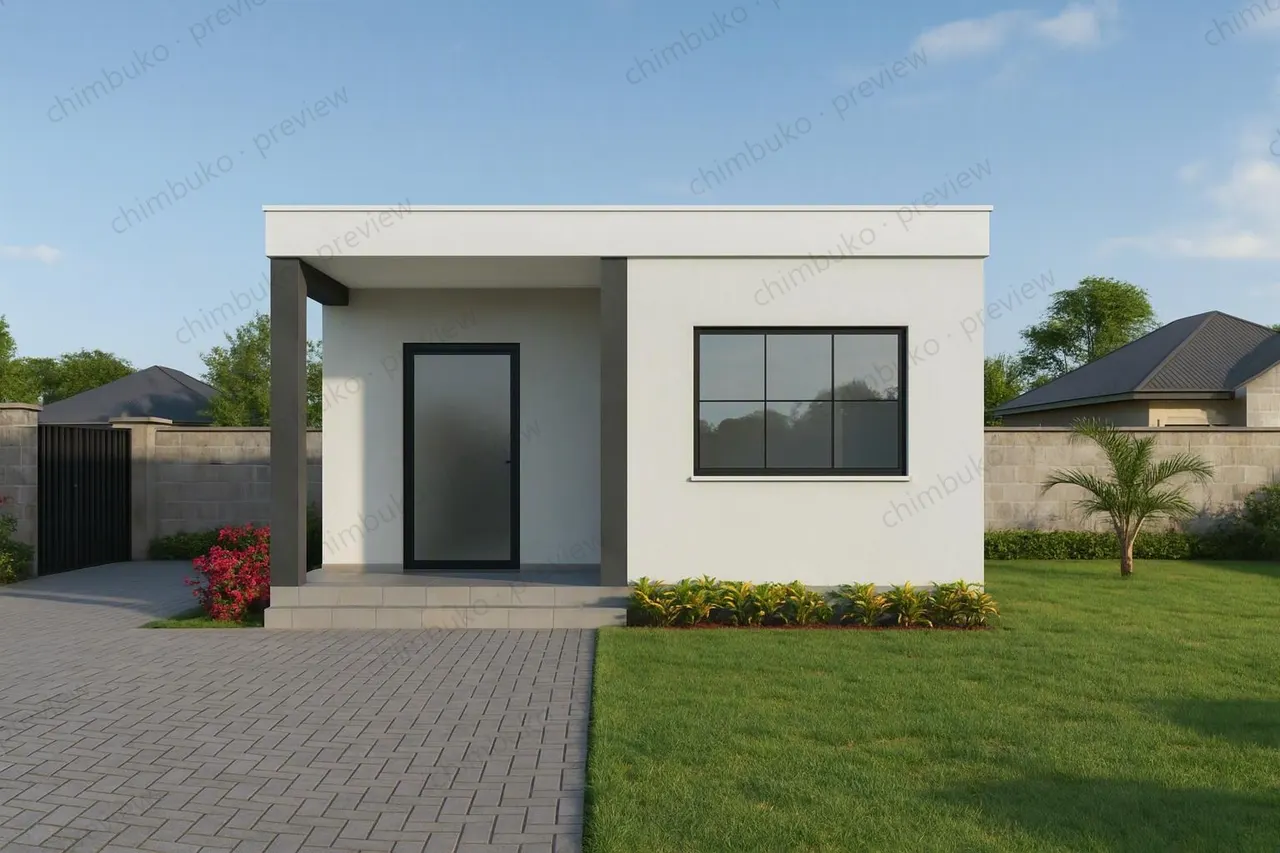

Front view of the compact 2-bedroom flat-roof bungalow for 40 by 80 plots
The 40 × 80 fit

Compact 2-Bedroom Bungalow (40 × 80 Plot)

2 bed (master ensuite) · 94.7 m² · 40 × 80 ft plot · est. KES 3.9M–4.9M

See the full set

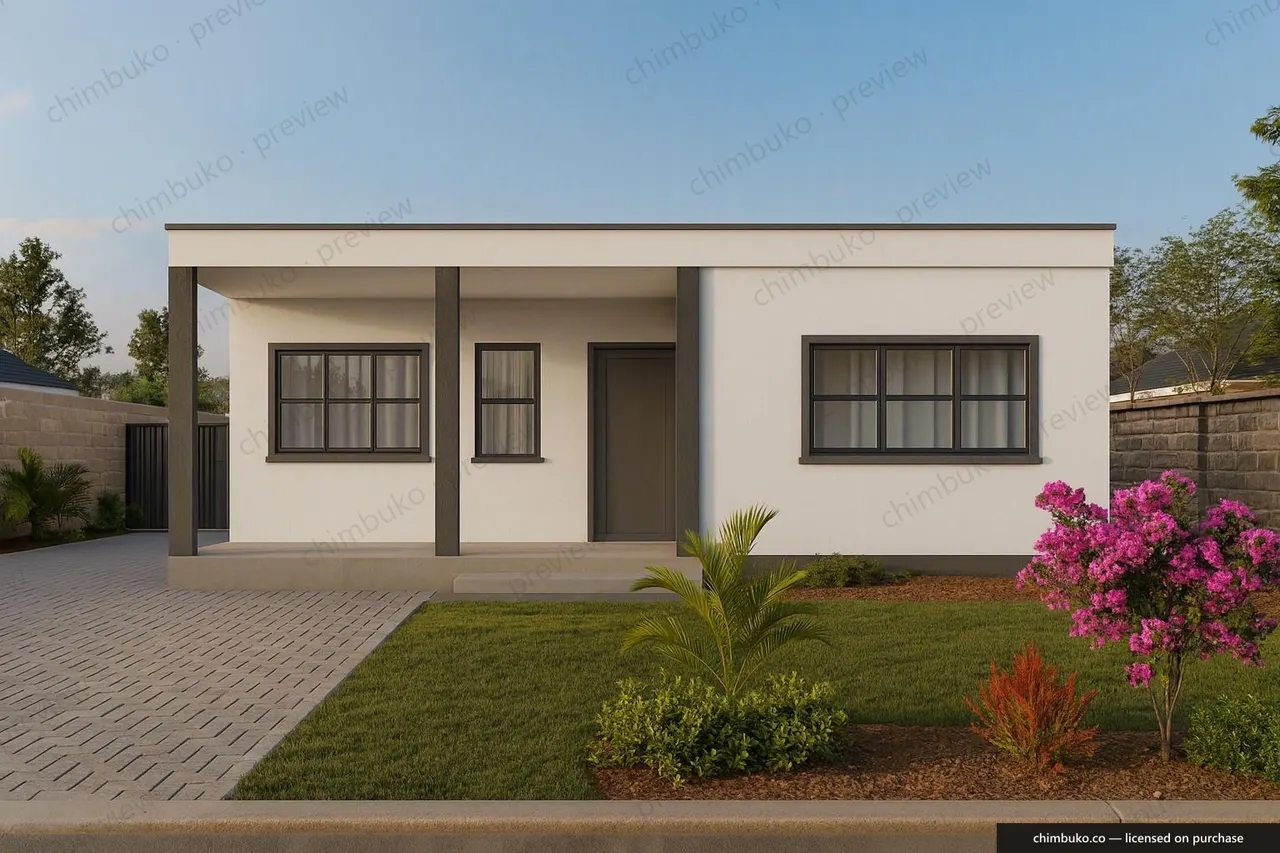

Front view of the modern 3-bedroom flat-roof bungalow
The modern 3-bed

Modern 3-Bedroom Bungalow (Flat Roof)

3 bed (master ensuite) · 119.5 m² · guest WC · flat roof · est. KES 4.8M–6.1M

See the full set

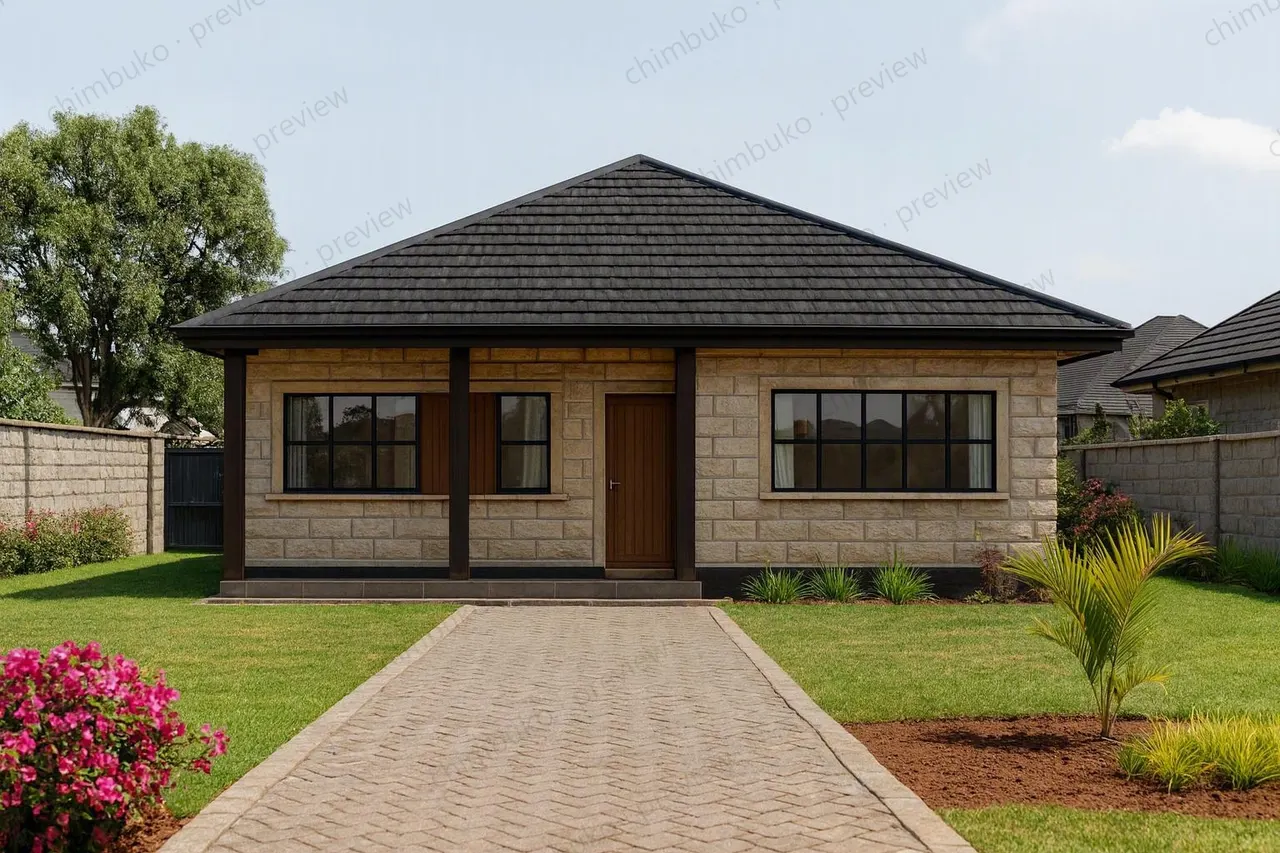

Front view of the compact 3-bedroom bungalow for 50 by 80 plots
The short-plot fit

Compact 3-Bedroom Bungalow (50 × 80 Plot)

3 bed (master ensuite) · 119.5 m² · 50 × 80 ft plot · est. KES 4.6M–5.9M

See the full set

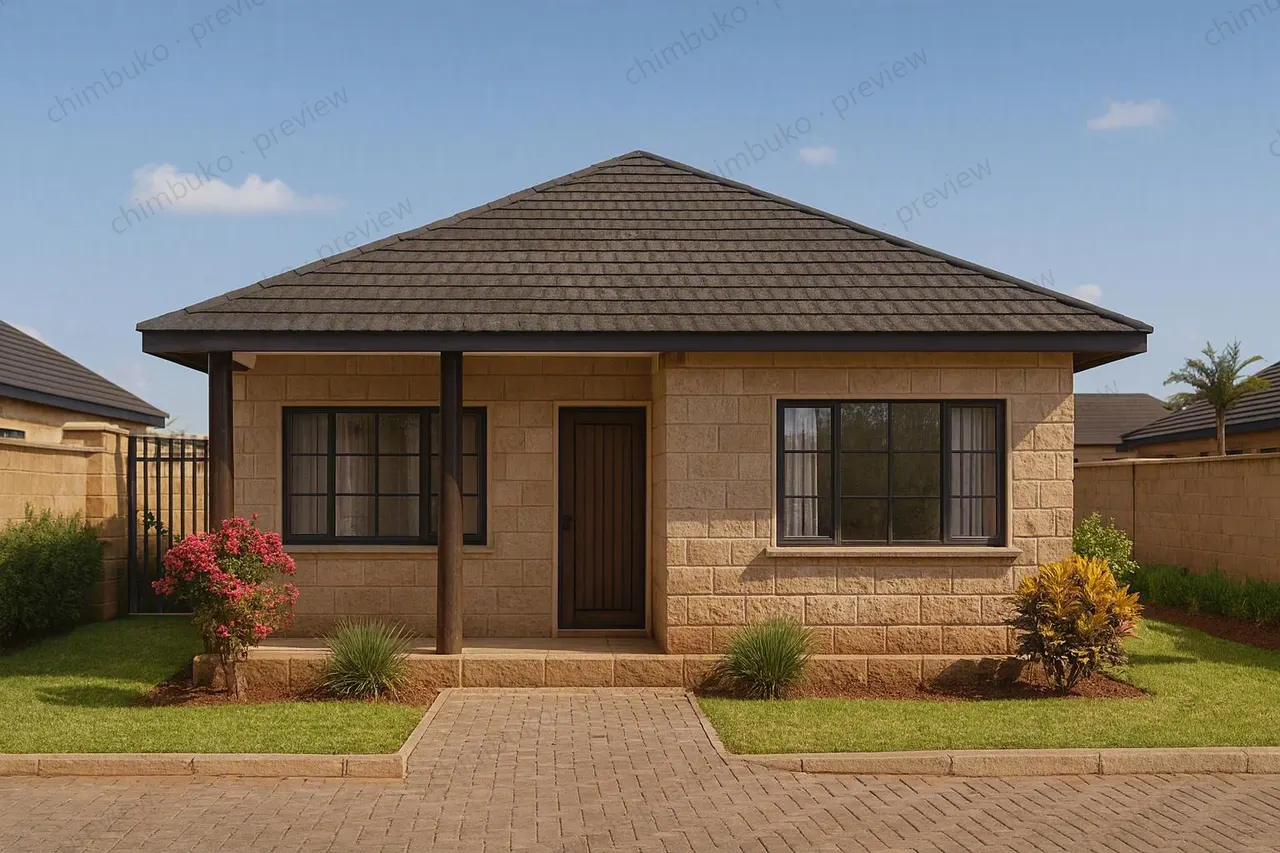

Front view of the 3-bedroom bungalow with a detached DSQ
With staff quarters

3-Bedroom Bungalow with DSQ

3 bed (master ensuite) · 135.4 m² incl. DSQ · 50 × 100 ft plot · est. KES 5.4M–6.9M

See the full set

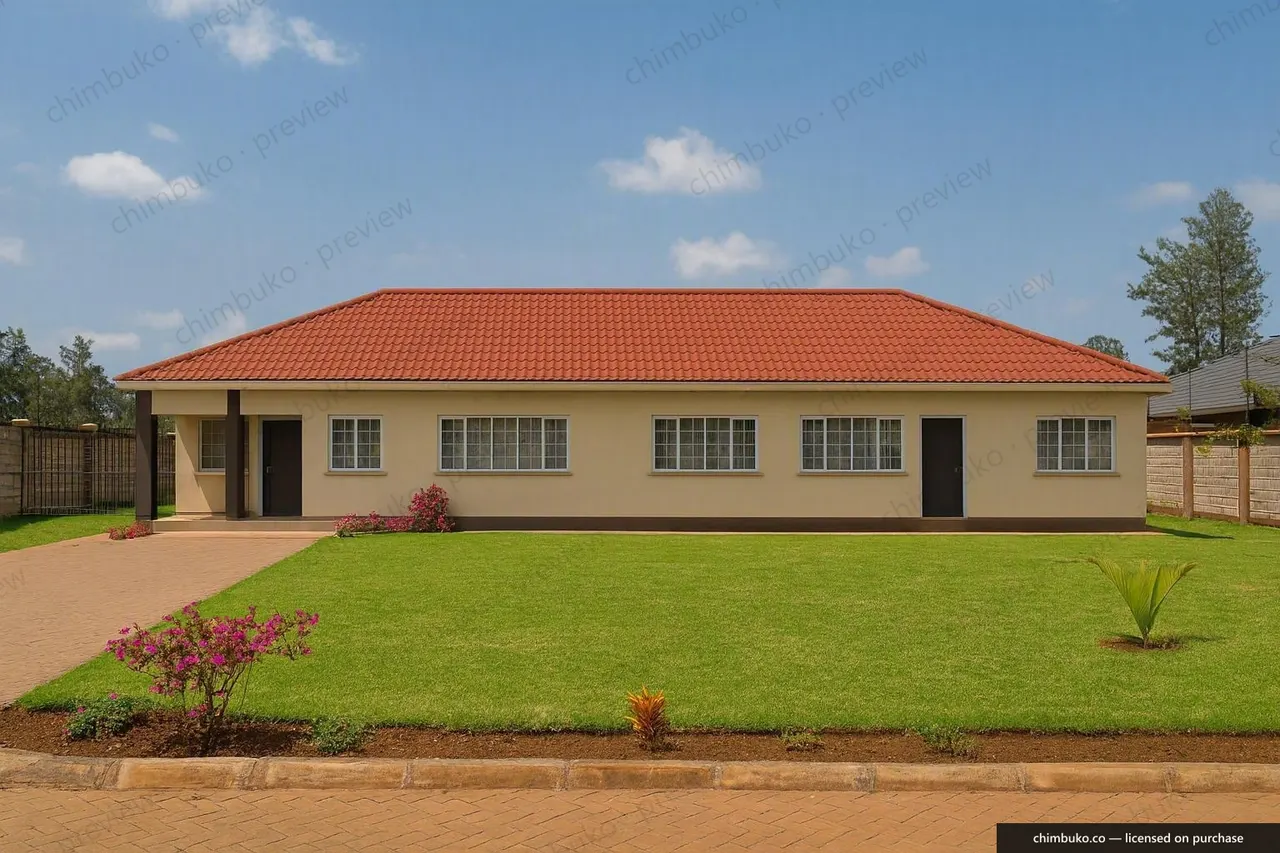

Front view of the 4-bedroom family bungalow with study
The family spread

4-Bedroom Family Bungalow with Study (Hip Roof)

4 bed (master ensuite) · 190.5 m² · study + formal lounge · est. KES 6.6M–8.4M

See the full set

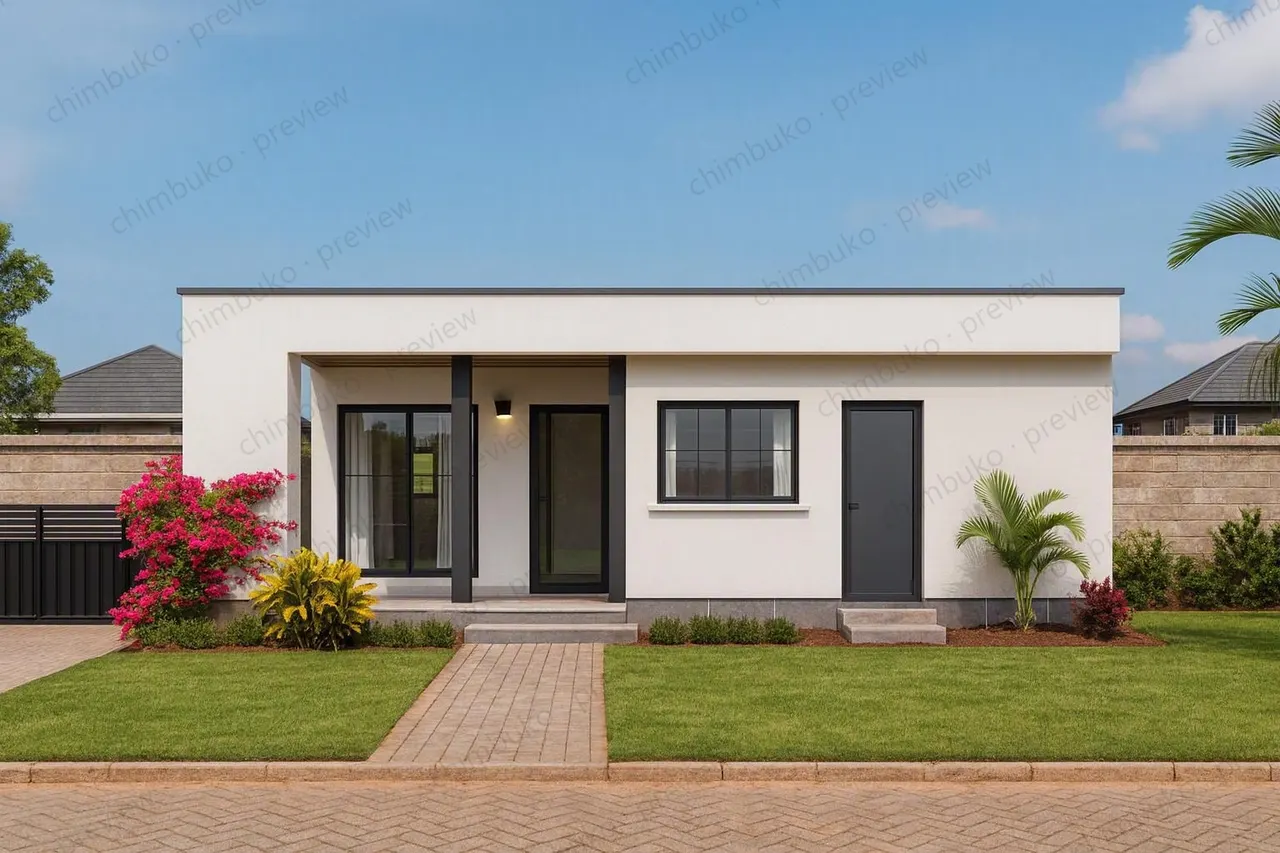

Front view of the 4-bedroom flat-roof bungalow with a study
Four beds, one level

4-Bedroom Modern Bungalow with Study (Flat Roof)

4 bed (master ensuite) · 148.6 m² · study · 60 × 100 ft plot · est. KES 5.9M–7.5M

See the full set

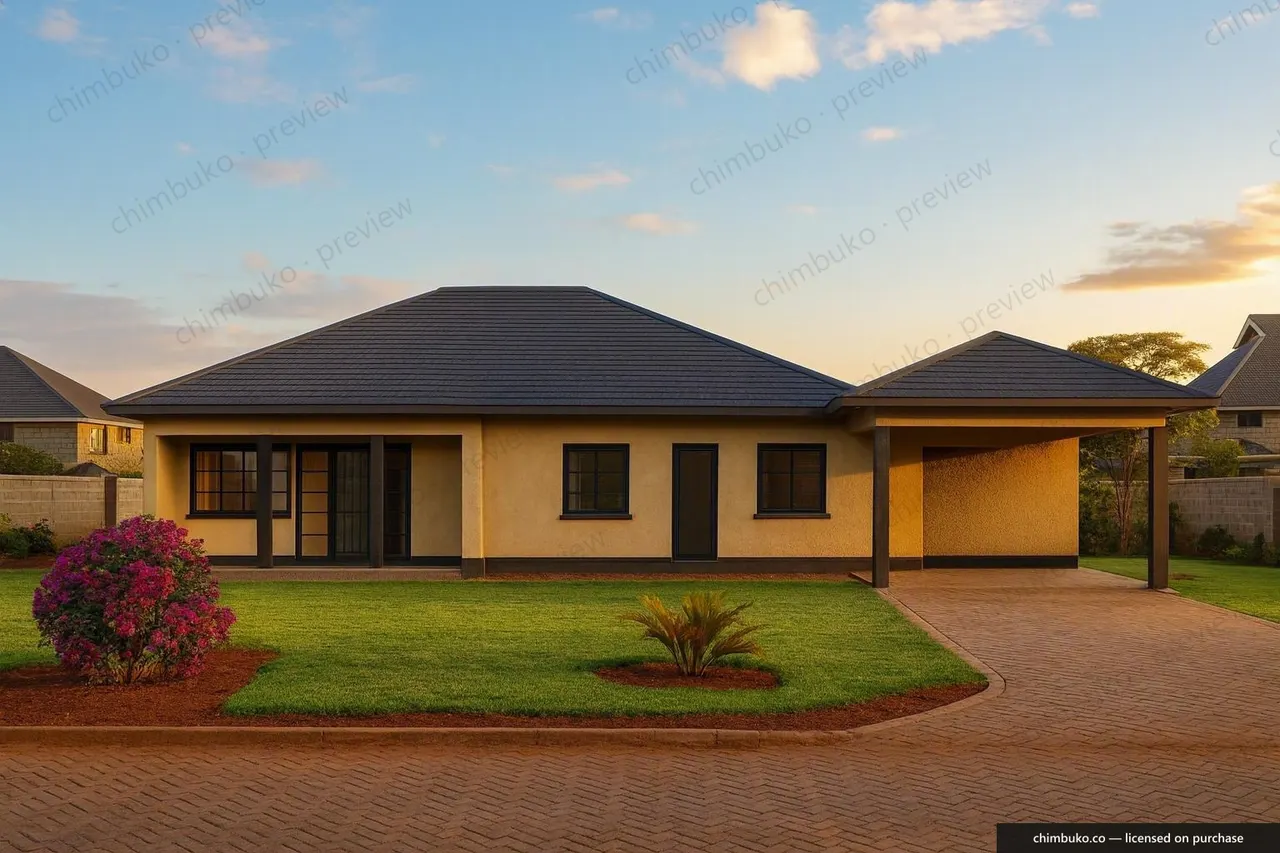

Front view of the 4-bedroom executive bungalow with detached DSQ
The executive compound

4-Bedroom Executive Bungalow (DSQ + Scullery)

4 bed (2 ensuite) · 207.3 m² · detached DSQ · 2-car carport · scullery · est. KES 7.8M–10.0M

See the full set

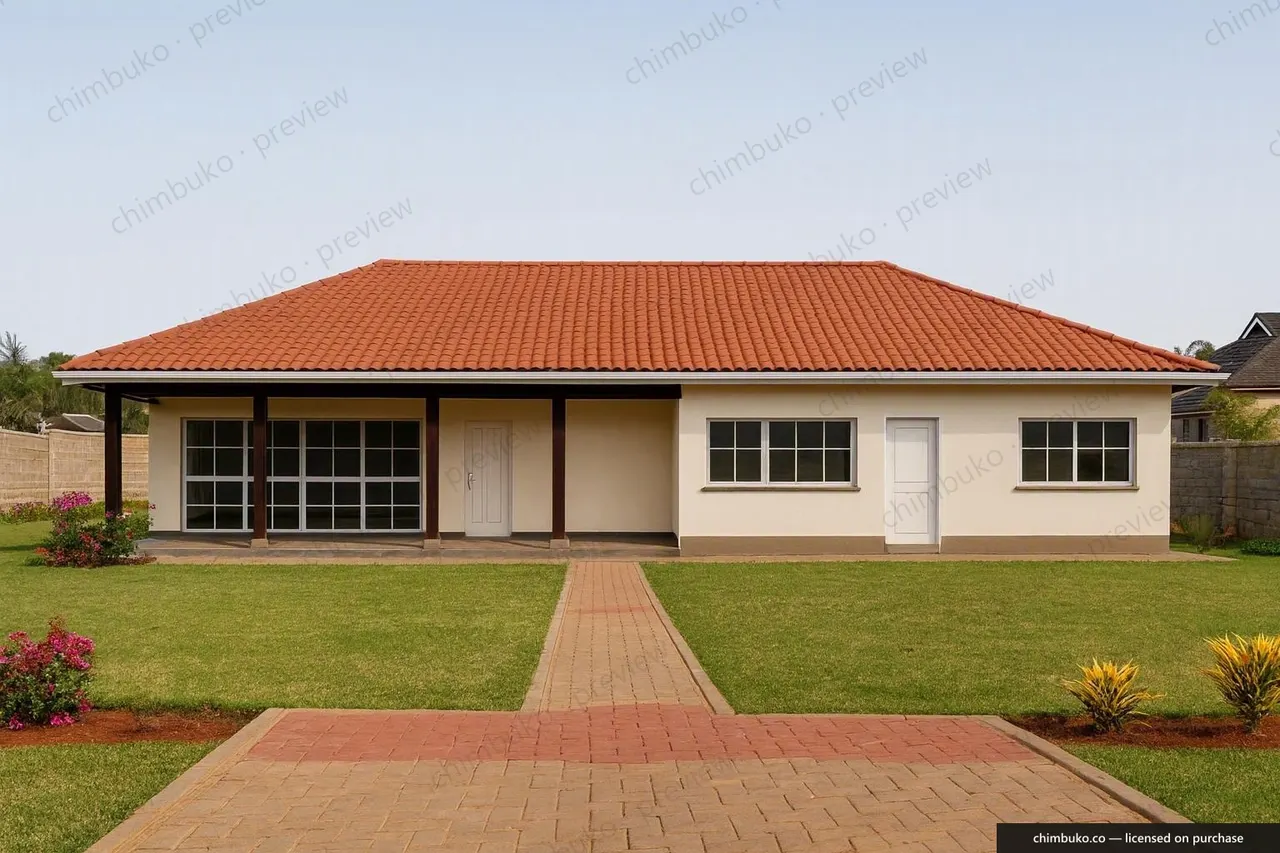

Front view of the 5-bedroom hip-roof family bungalow
The big single-storey

5-Bedroom Family Bungalow (Hip Roof)

5 bed (master ensuite) · 191.7 m² · guest WC · closed kitchen · est. KES 6.4M–8.2M

See the full set

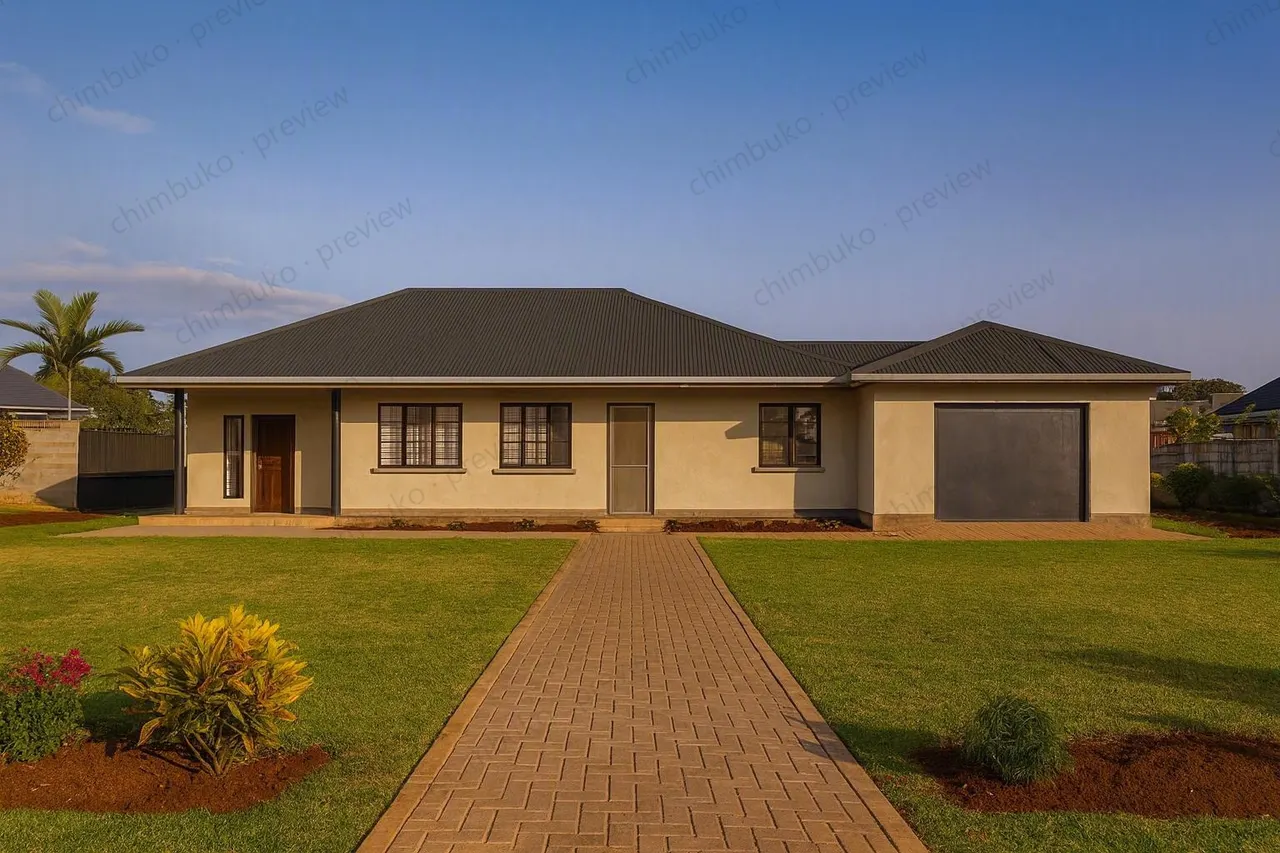

Front view of the 5-bedroom executive bungalow with garage and DSQ
The full compound

5-Bedroom Executive Bungalow (Garage + DSQ)

5 bed (master ensuite) · 206.7 m² incl. DSQ · enclosed 2-car garage · est. KES 7.8M–9.9M

See the full set

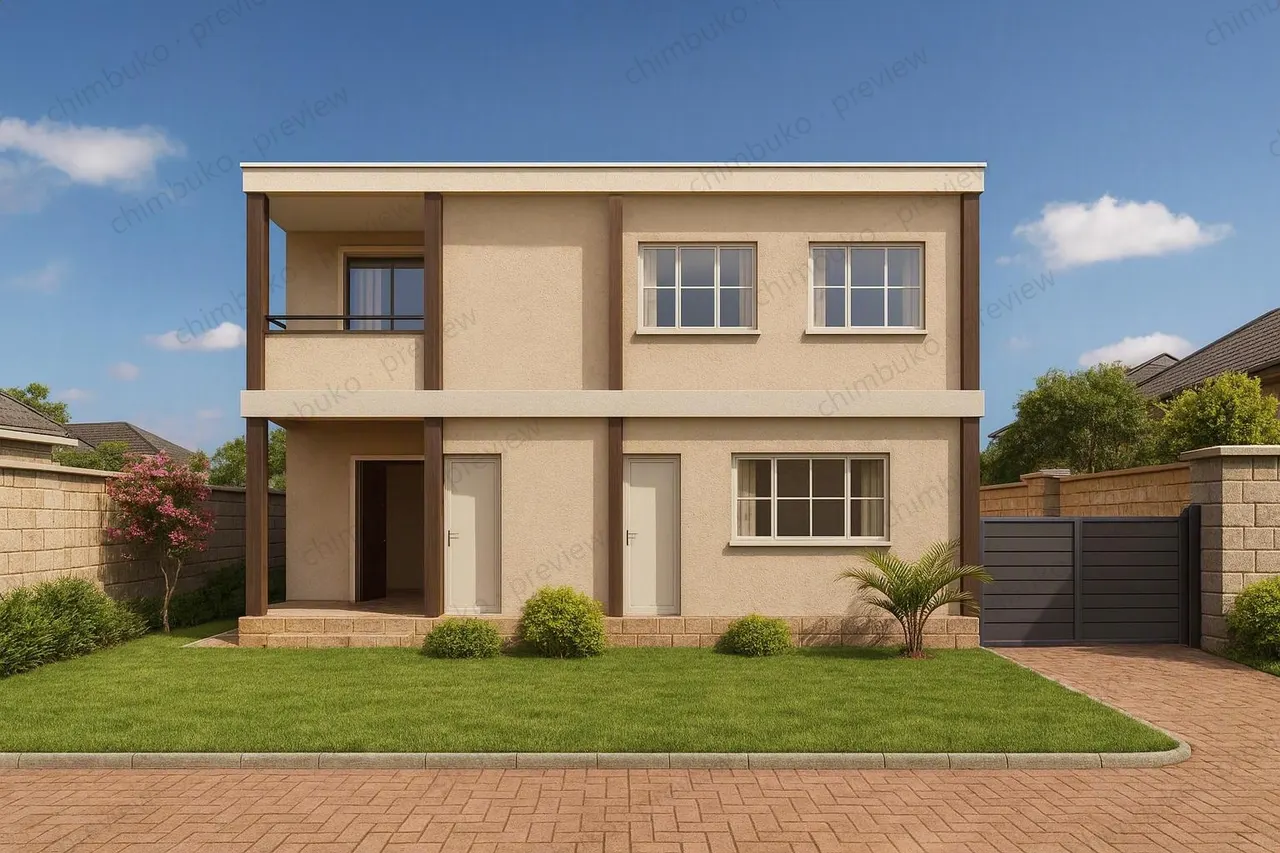

Front view of the compact 3-bedroom flat-roof maisonette
The short-plot two-storey

Compact 3-Bedroom Maisonette (Flat Roof)

3 bed (master ensuite) · 190.1 m² · 2 storeys · balcony · est. KES 5.5M–7.0M

See the full set

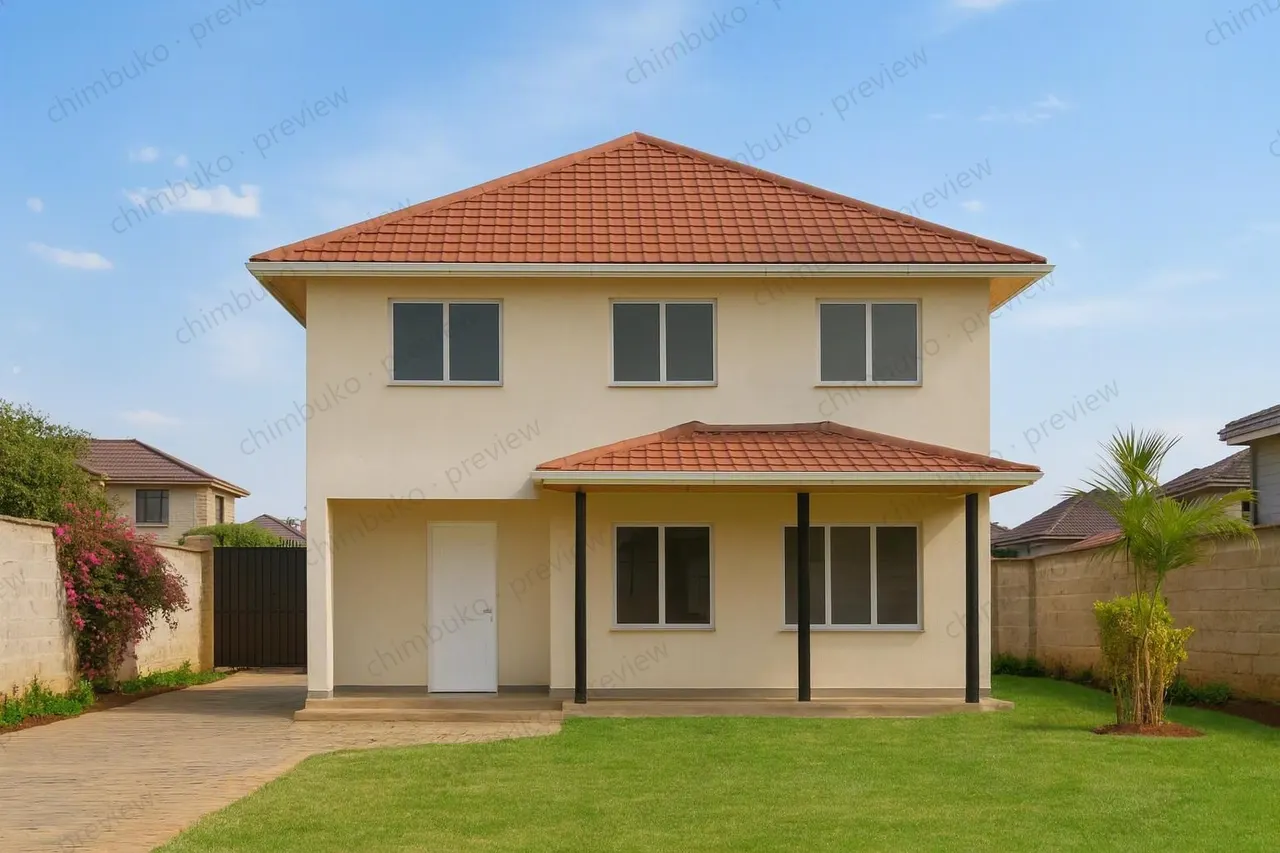

Front view of the 3-bedroom hip-roof maisonette
Two receptions, three beds

3-Bedroom Maisonette (Hip Roof)

3 bed (2 ensuite) · 198.1 m² · 2 storeys · formal lounge · est. KES 6.2M–7.8M

See the full set

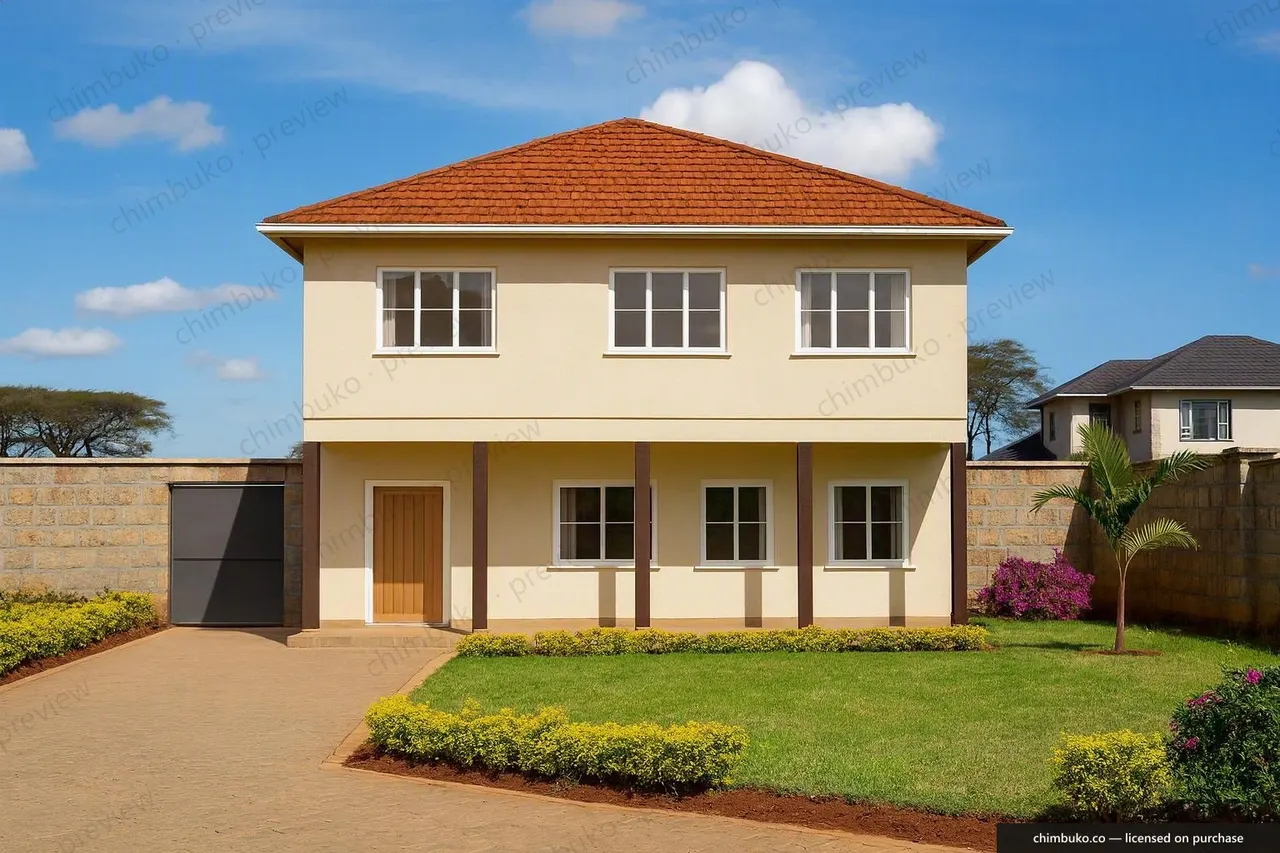

Front view of the classic 4-bedroom hip-roof maisonette
The classic two-storey

Classic 4-Bedroom Maisonette (Hip Roof)

4 bed (2 ensuite) · 199.1 m² · 2 storeys · formal lounge · est. KES 6.1M–7.8M

See the full set

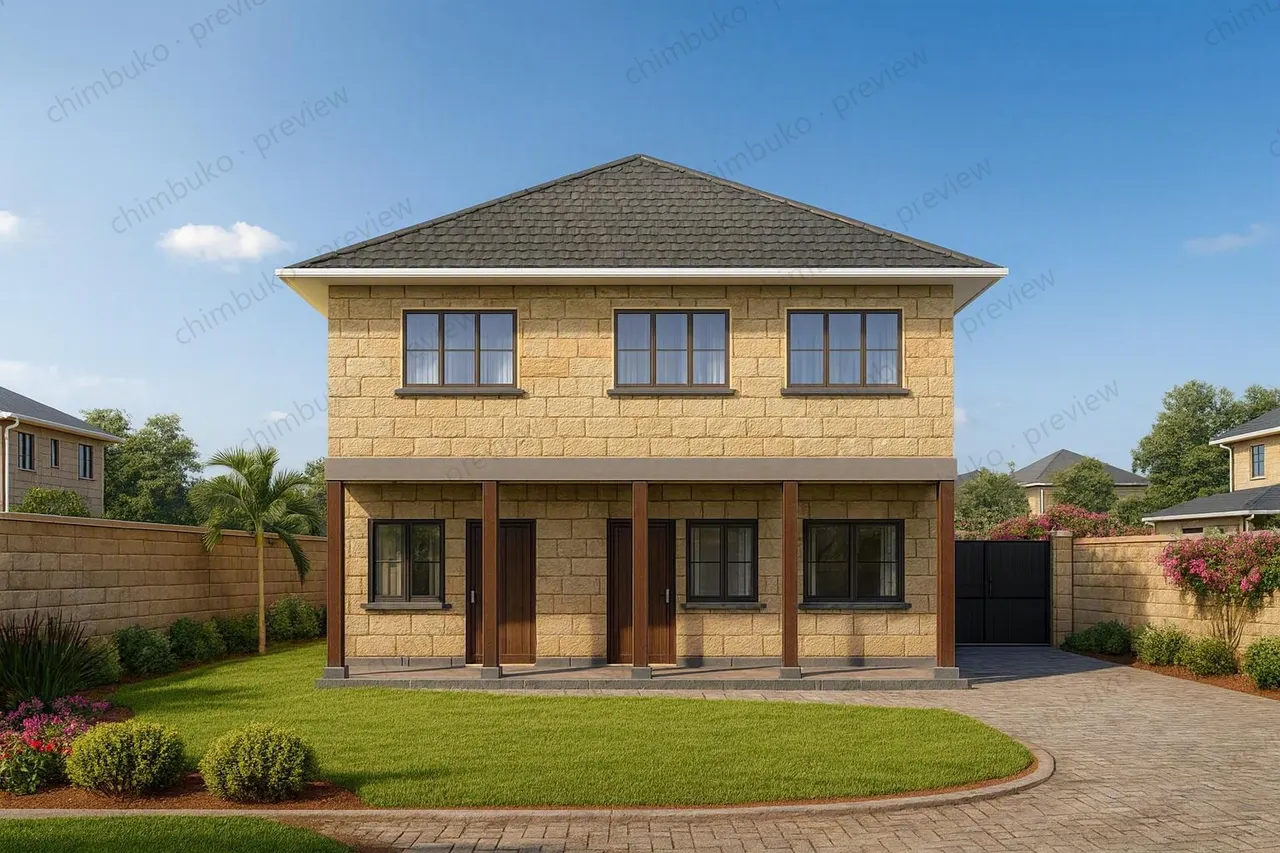

Front view of the 4-bedroom maisonette with a detached garage
Sunken lounge

4-Bedroom Maisonette (Garage + Sunken Lounge)

4 bed (2 ensuite) · 235.3 m² incl. garage · sunken lounge · est. KES 7.2M–9.1M

See the full set

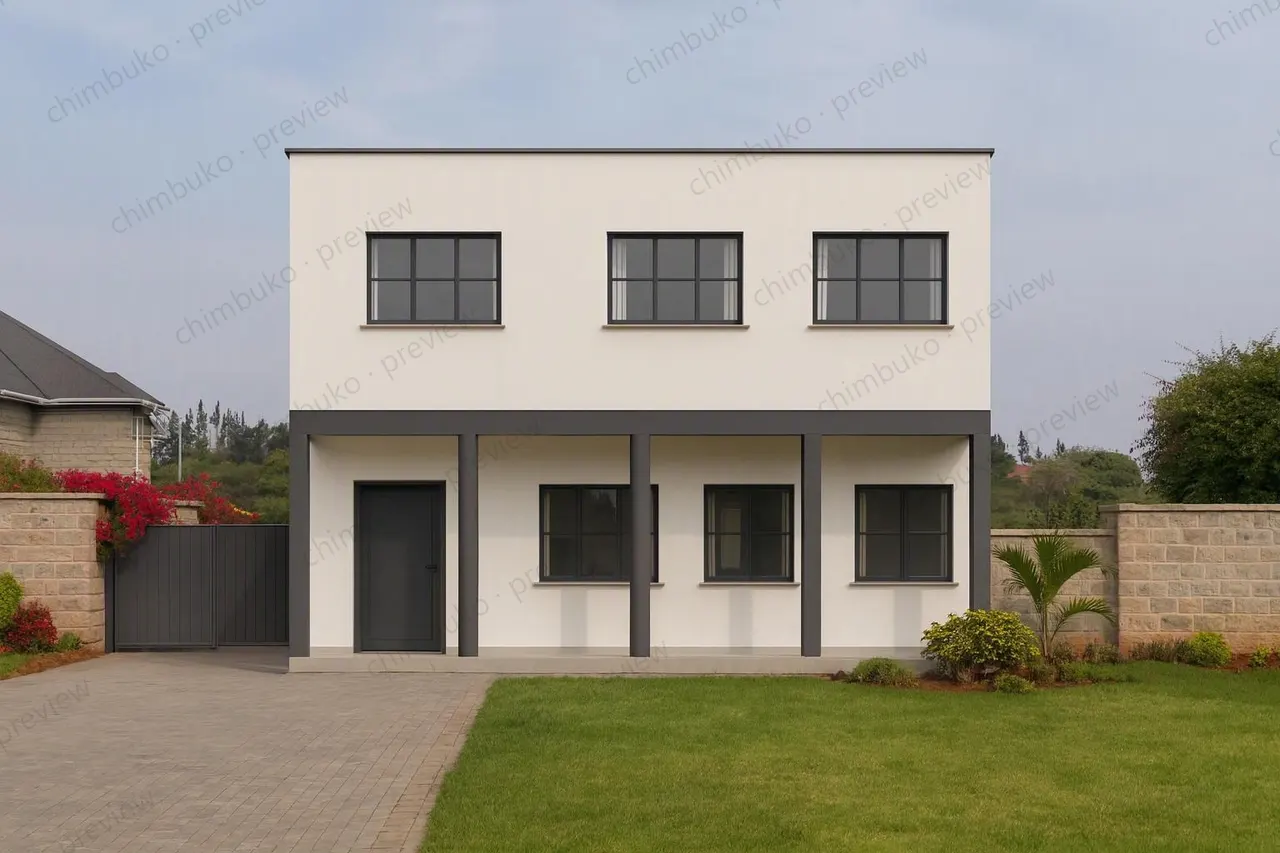

Front view of the 4-bedroom flat-roof maisonette with a study
Works from home

4-Bedroom Maisonette (Study + Walk-In)

4 bed (2 ensuite) · 217.5 m² · 2 storeys · study + formal lounge · est. KES 6.7M–8.5M

See the full set

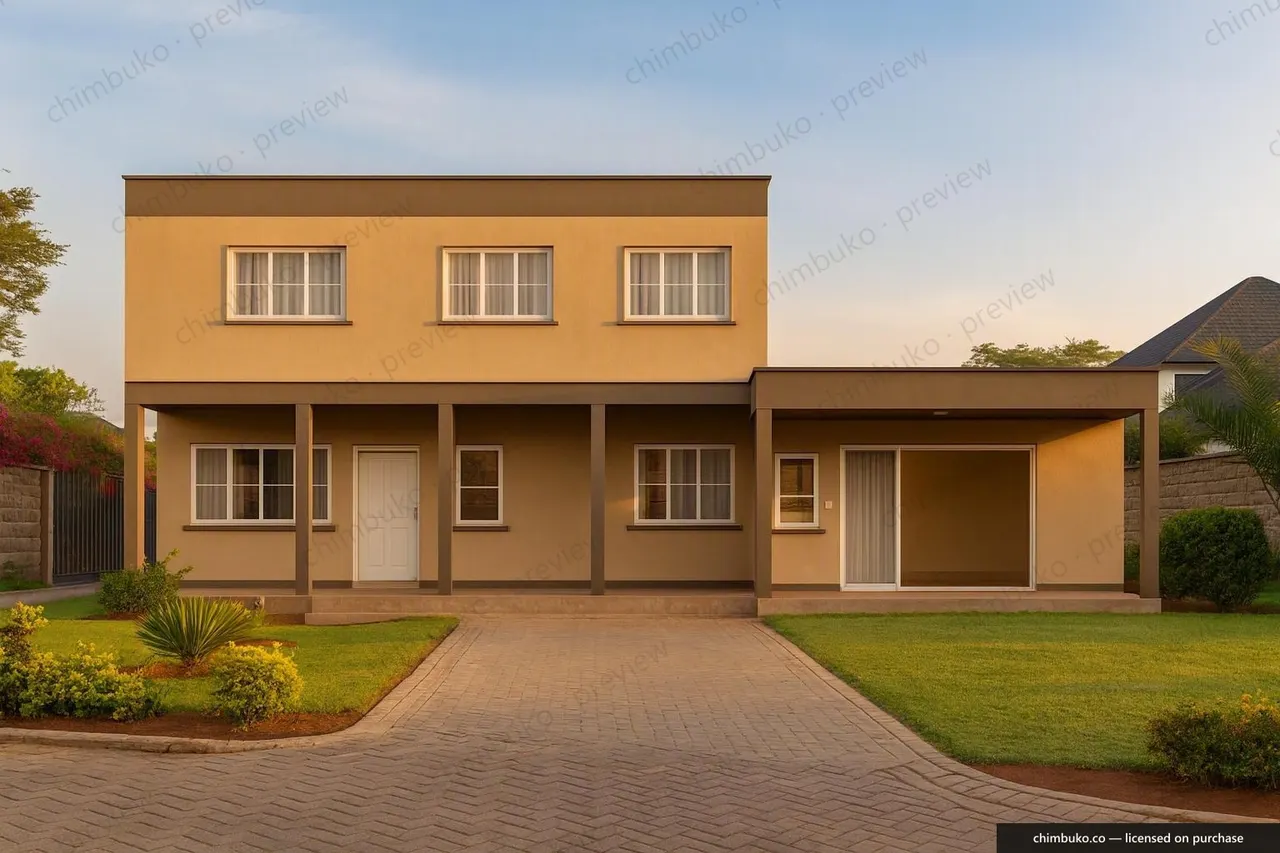

Front view of the 5-bedroom luxury flat-roof maisonette
The luxury flagship

5-Bedroom Luxury Maisonette (DSQ + Carport)

5 bed (3 ensuite) · 292 m² · 2 storeys · DSQ + scullery · 2-car carport · est. KES 8.7M–11.1M

See the full set

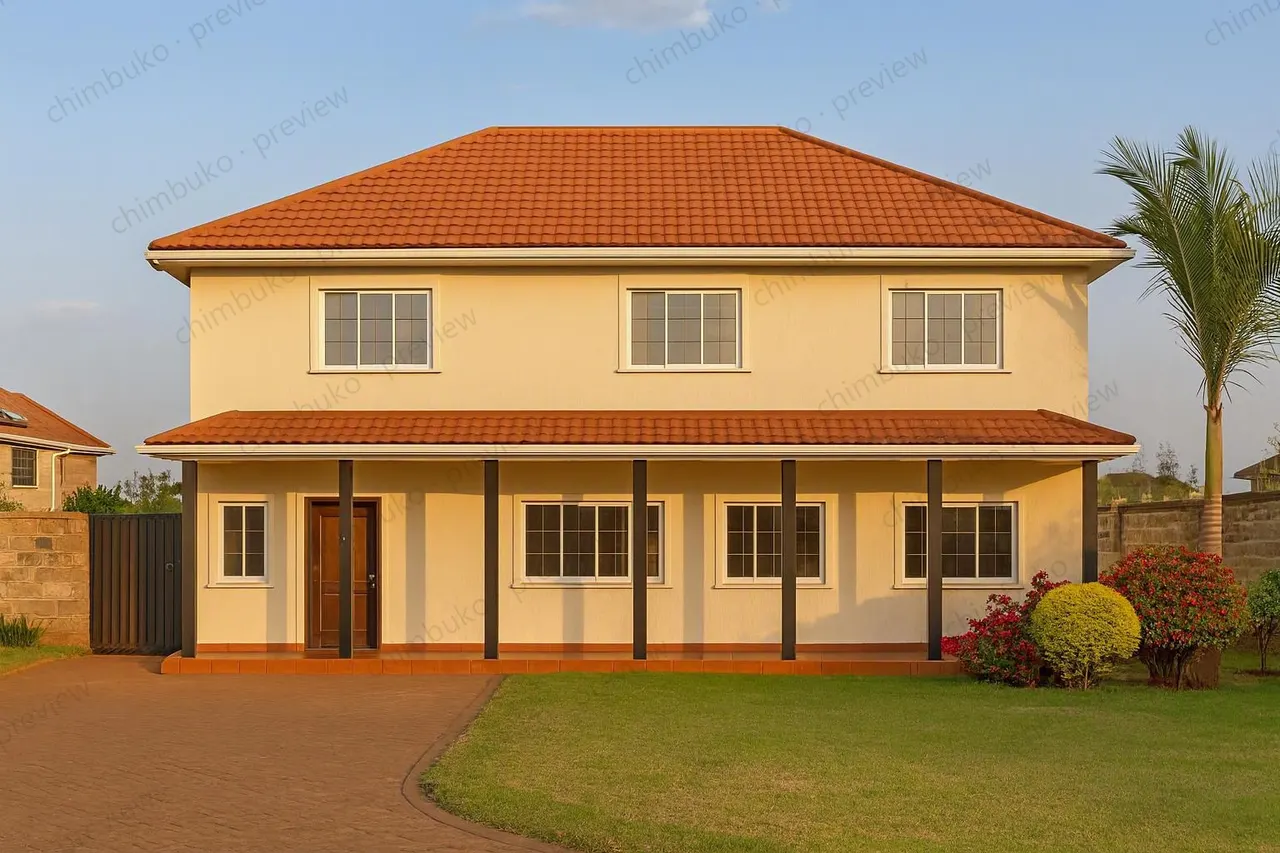

Front view of the 5-bedroom hip-roof maisonette with a study
The big family house

5-Bedroom Maisonette with Study (Hip Roof)

5 bed (2 ensuite) · 256.5 m² · 2 storeys · study + formal lounge · est. KES 7.3M–9.3M

See the full set

Every plan here can be re-briefed to your plot and family — these are starting points, not a fixed catalogue. More plans publish as clients consent to share theirs.

Rough band

What would mine cost to build?

Indicative build costKES 5.22M – 6.64MKES 36,000 – 46,000 / m²Matches the bungalow plan page — same source

Extrapolated from published Chimbuko bills of quantities on this site. Not a quotation, and not a substitute for a real BOQ priced on your actual design.

Brief your own plan
Start free
