Compact 2-Bedroom Bungalow for a 40 × 80 Plot
What a 40 × 80 actually carries on one floor. Hold the standard three-metre setbacks on both sides of a 12.2 m frontage and you are left with roughly six metres to build across — room for two bedrooms at legal sizes, not three. So this plan spends the space it has on a generous living room and an open kitchen and dining, gives the master its ensuite, and does not pretend a third bedroom fits.
- Bedrooms
- 2 (master ensuite + shared bathroom)
- Day zone
- Living Room · Open Kitchen / Dining · Pantry · Laundry · Verandah
- Floor area
- 94.7 m² on a single storey
- Roof
- Flat, concealed behind parapets
- Fits plot
- from 40 × 80 ft (12.2 × 24.4 m)
Elemental BOQ, current rates version, ±10% band — not a quotation.

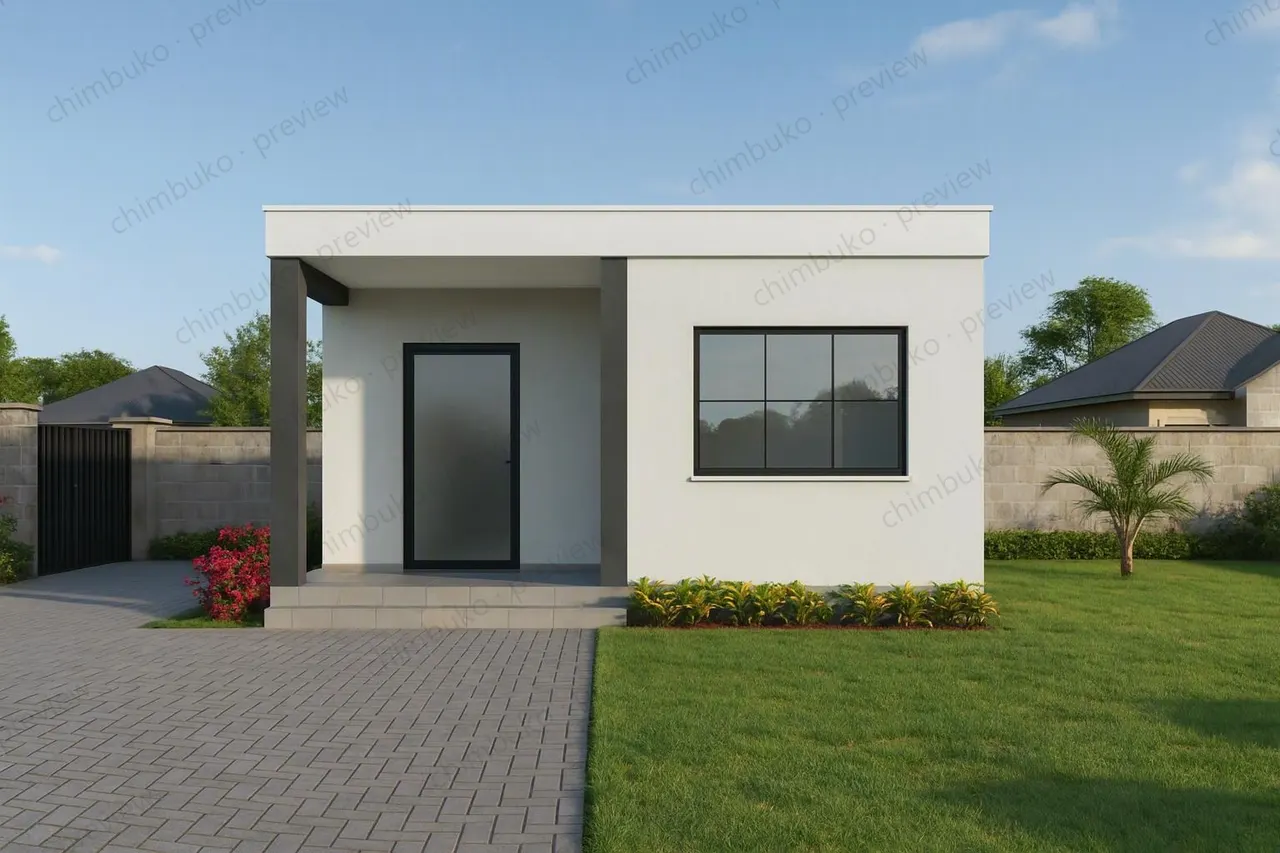

Front view — photoreal render of this exact plan.

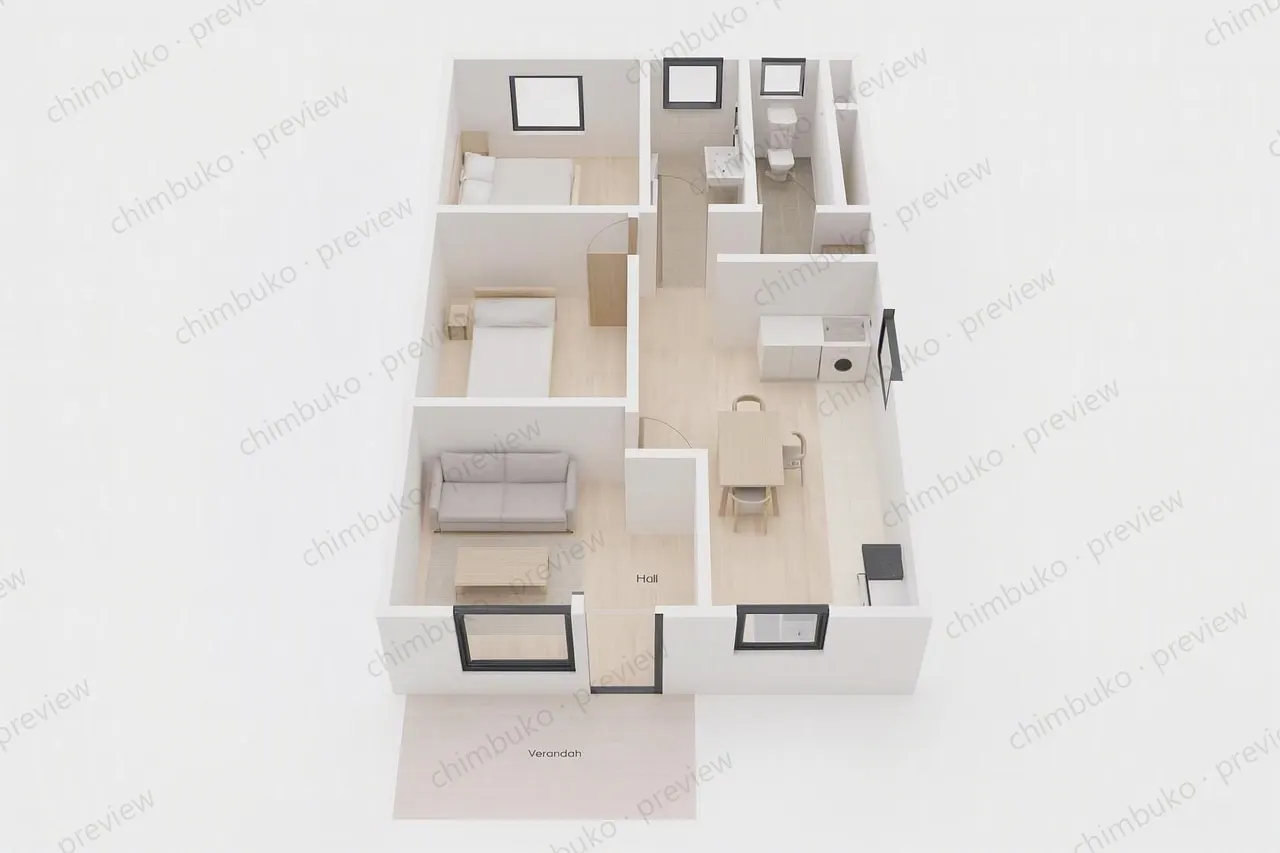

3D cutaway: every room, exactly as drawn.
Presentation floor plan — obscured preview; dimensions and scale on purchase.

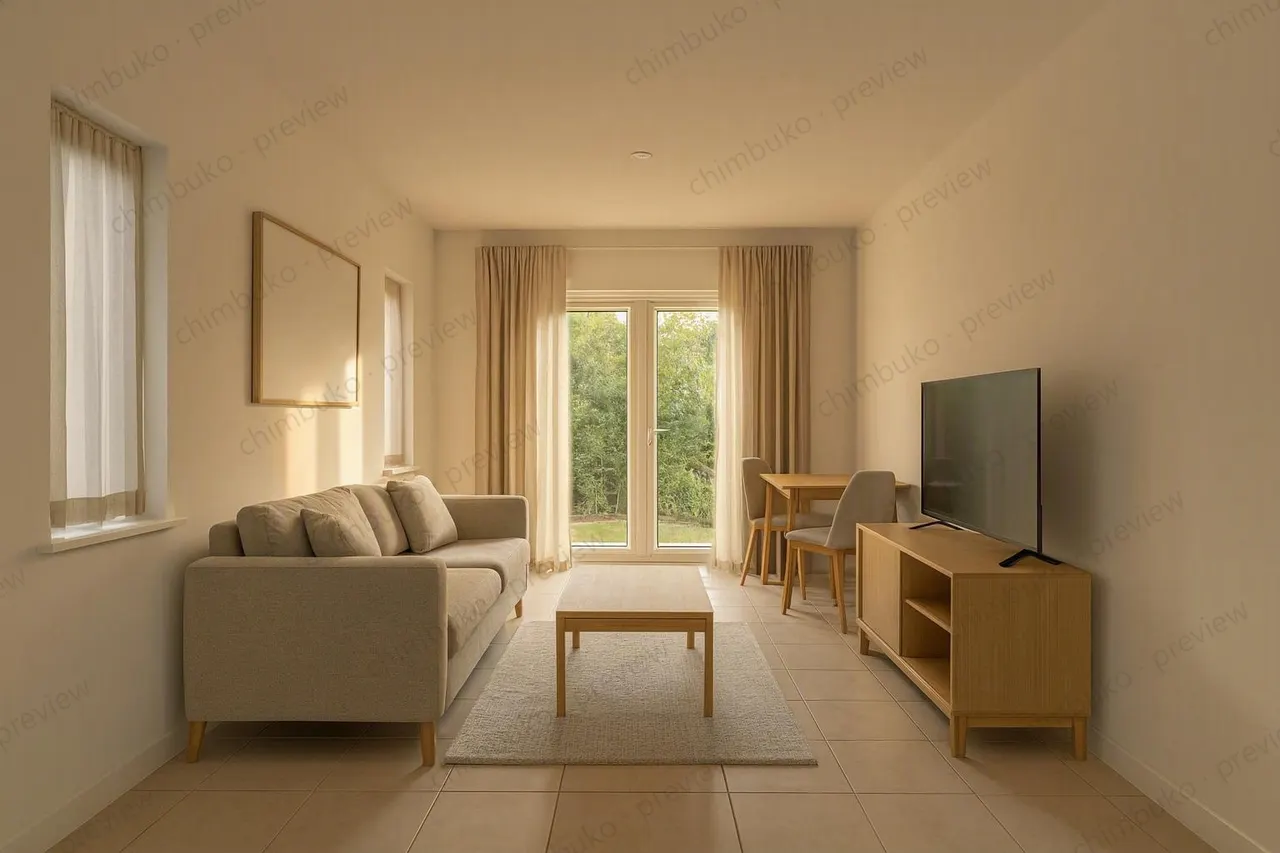

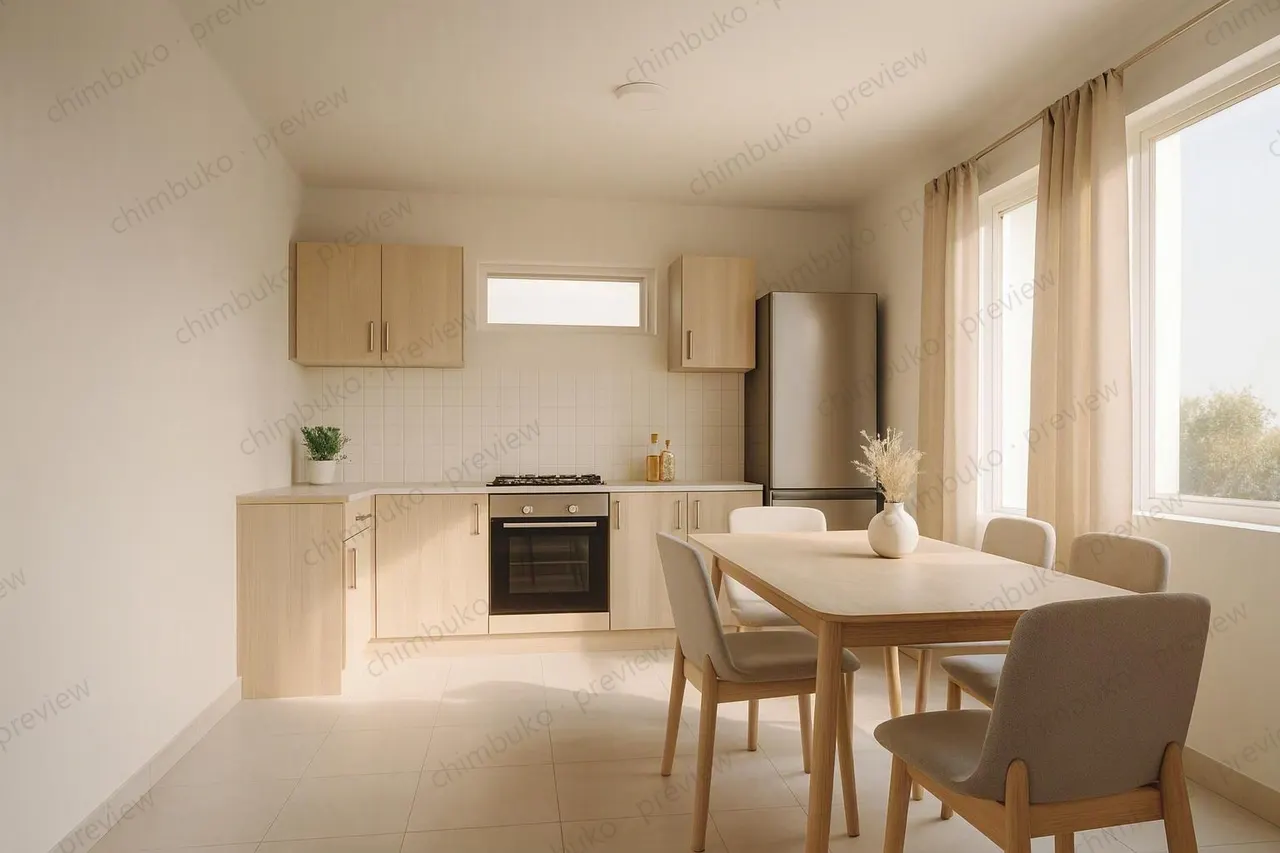

Interiors staged from the actual furniture layout.

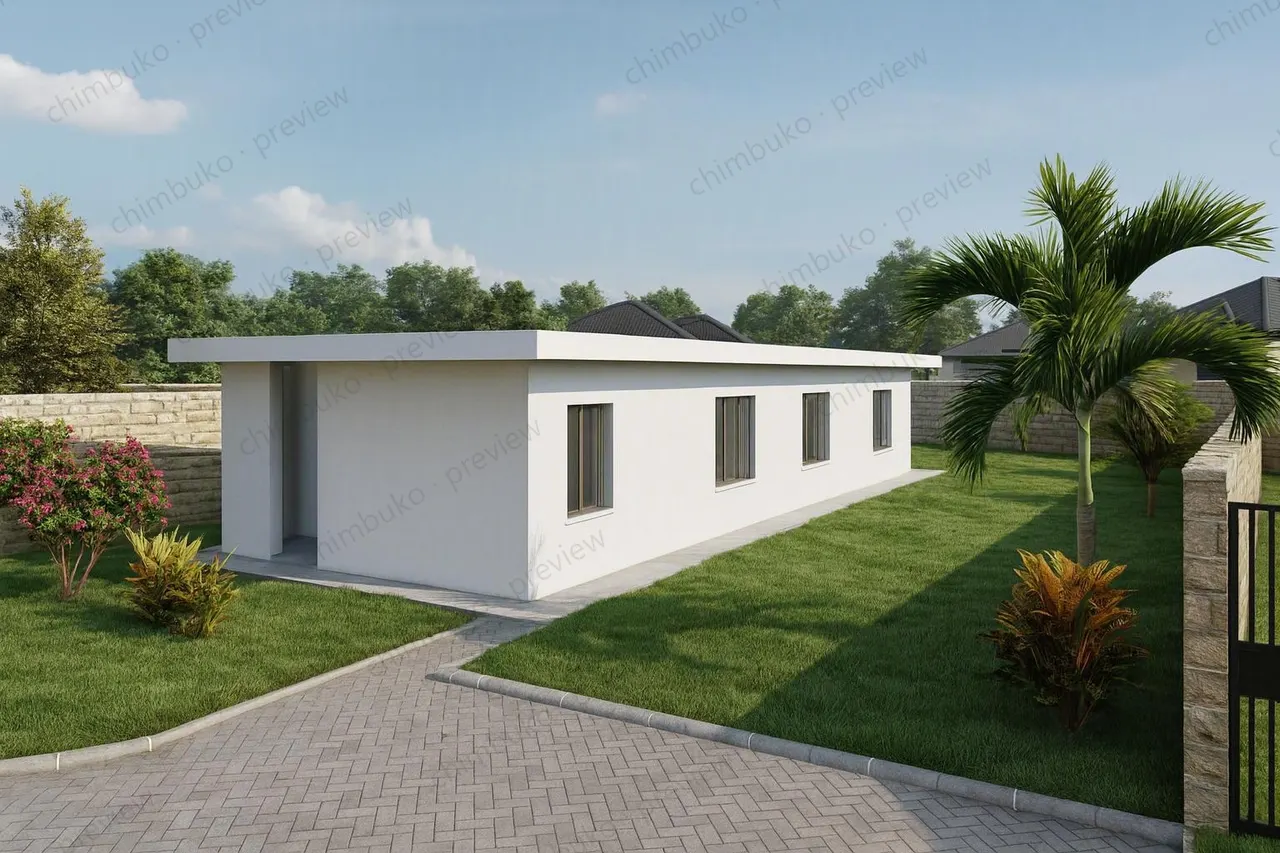

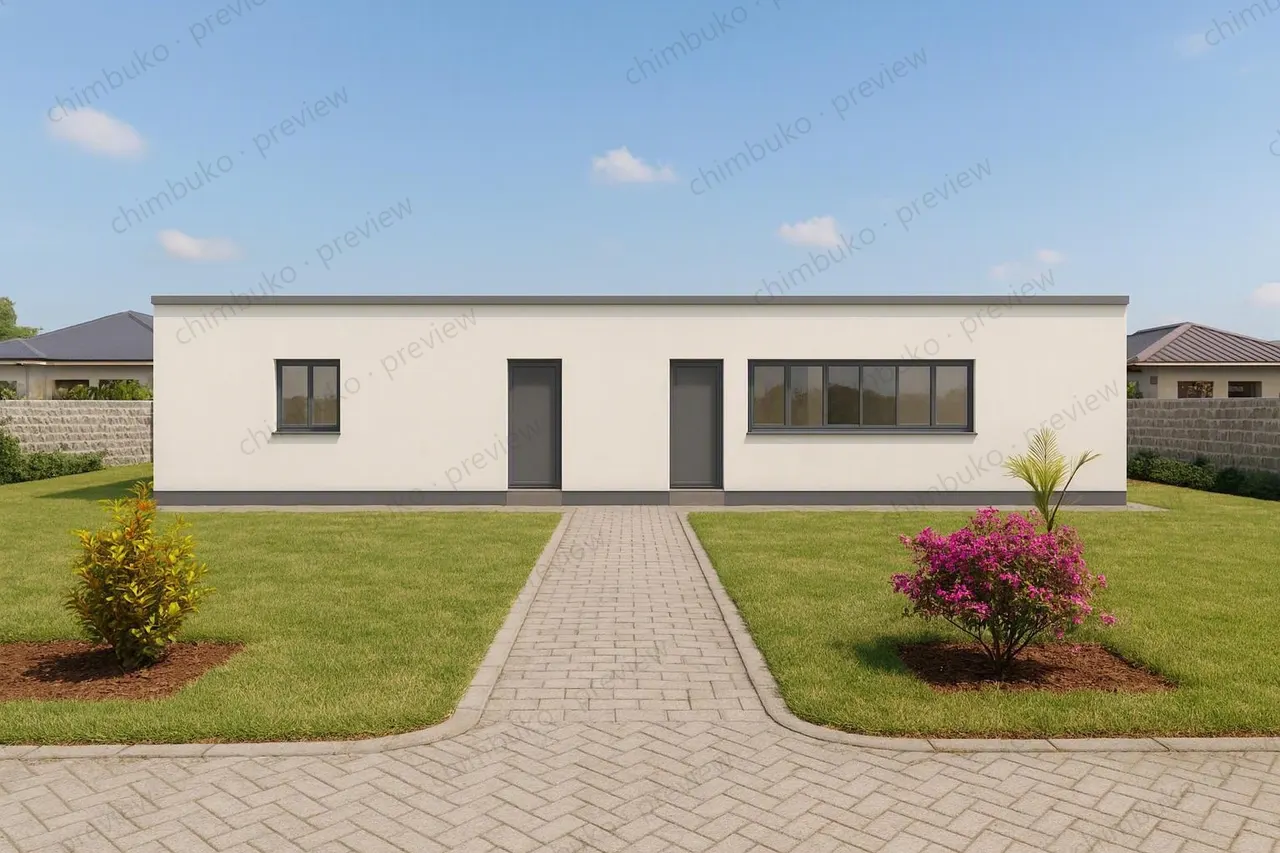

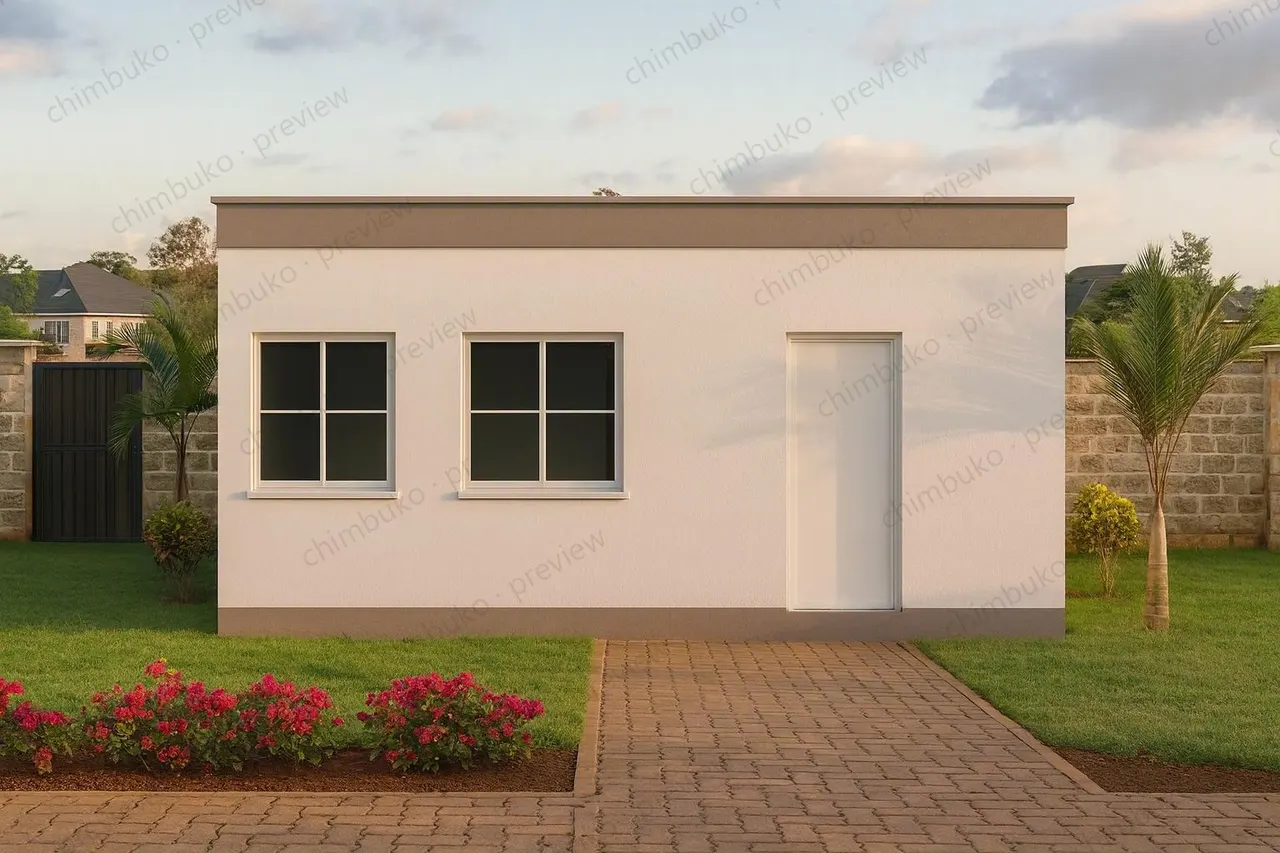

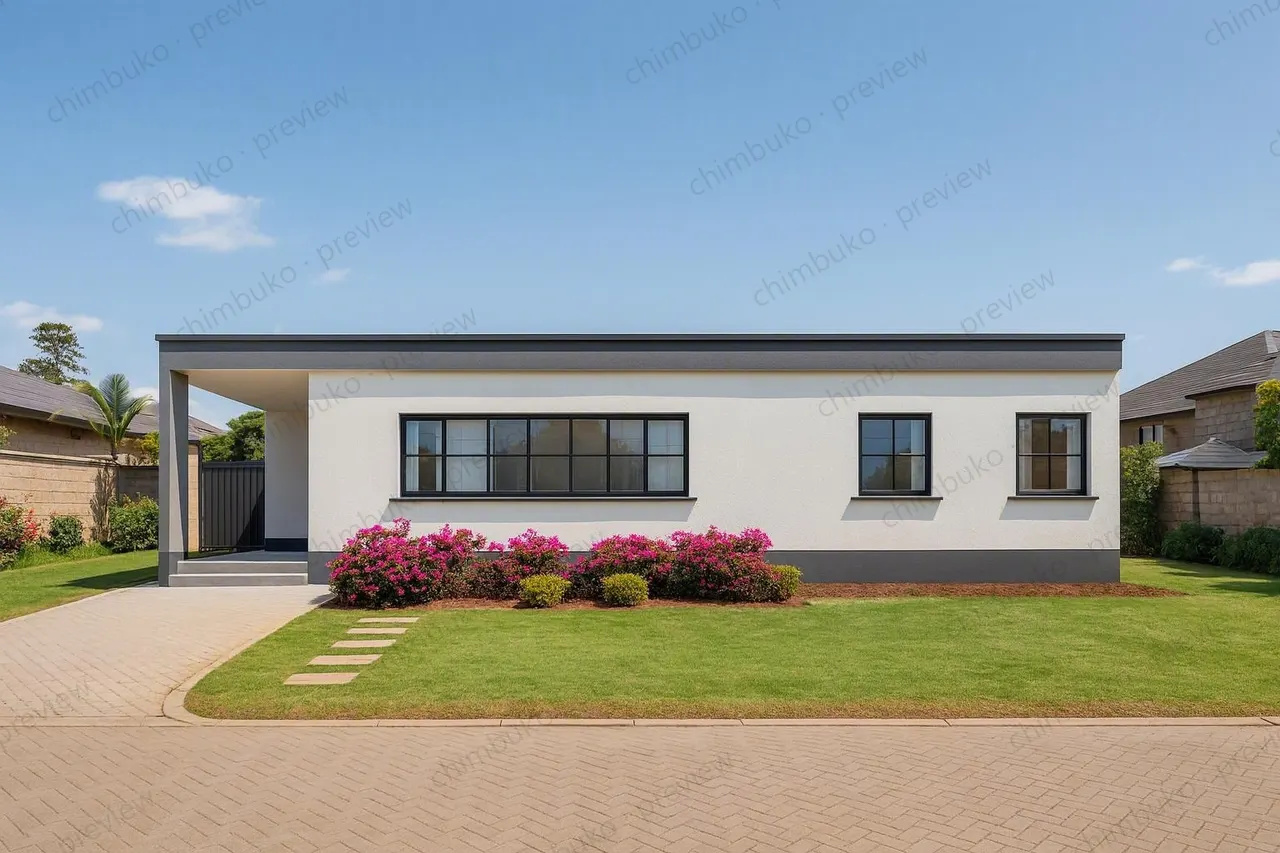

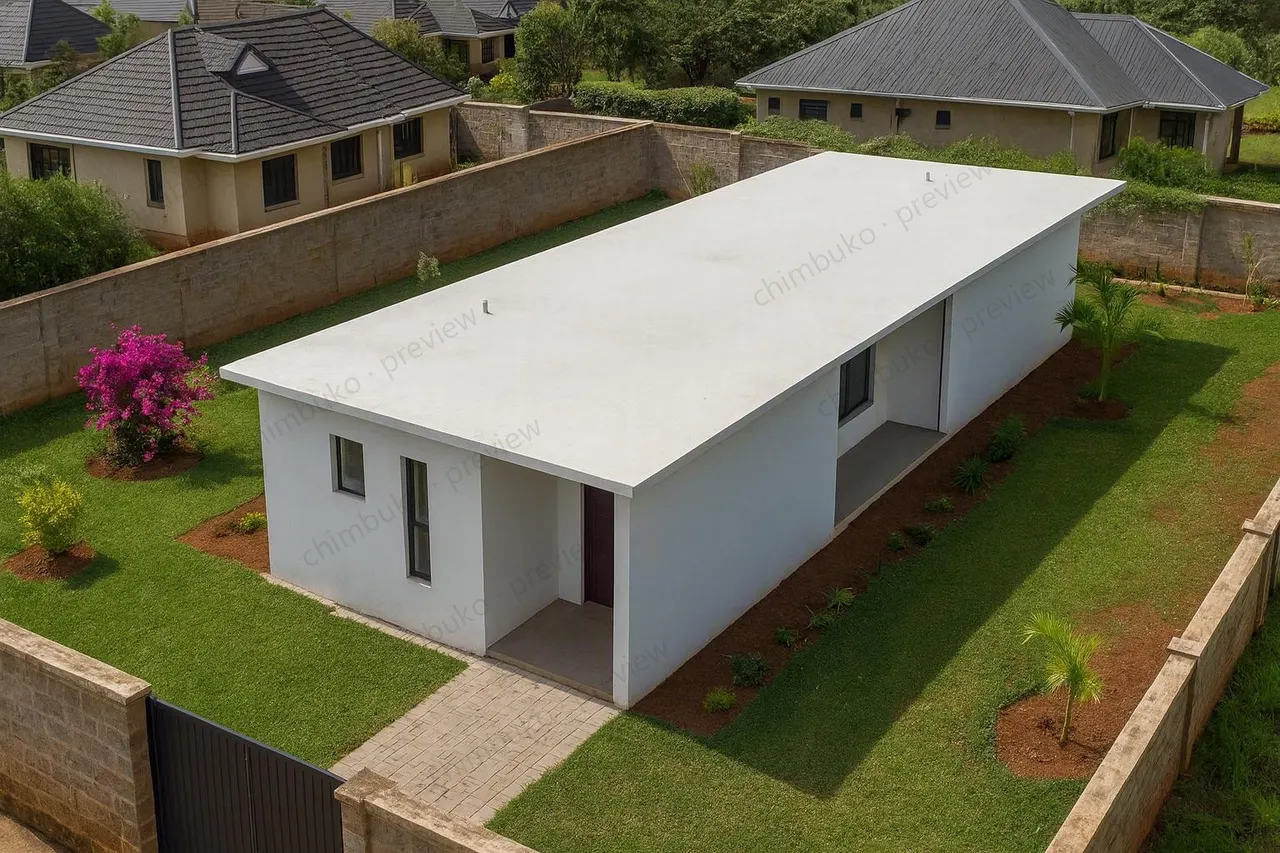

Every side, the roof line, and the working model.
Technical Pack sheets — obscured previews; full sheets arrive with the pack.
Click any drawing to open it full-size. Use ← → to move through the set.
What each package gets you on this plan
Questions about this plan
Can this 2-bedroom bungalow plan change to fit my plot?
Yes — this is a generated plan, not a fixed stock drawing. Brief your actual plot dimensions, gate side and county in chat and the plan regenerates around them, re-checked against Kenyan residential code rules. The first pass and revisions are free to preview.
How much does it cost to build this 2-bedroom bungalow in Kenya?
KES 3.85M – 4.90M for the 94.7 m² set shown here — an elemental BOQ estimate at the current rates version with a ±10% band, not a quotation. The Technical Pack includes the priced Bill of Quantities behind that figure.
What do I get when I buy this plan?
Four packages, each including everything before it: the Floor-Plan Pack at KES 3,500 (presentation floor plan, clean), Plan + Views at KES 6,500 (full PDF set with all nine photoreal views), the Technical Pack at KES 9,500 (electrical and drainage schematics plus the priced BOQ), and the Stamped Set at KES 29,500 (BORAQS-registered architect's stamp, printed sets and DXF). All prices are VAT-inclusive.
Can I submit this plan for county approval?
With the Stamped Set, yes: a BORAQS-registered architect reviews the drawings and signs as architect of record before stamping. Until that review, every sheet is marked schematic pre-design — counties require the stamp to accept a submission.
Make this plan mine
Need a third bedroom on this plot? It has to go up — brief the two-storey version and the plan regenerates.
