Classic 4-Bedroom Maisonette — Hip Roof
The maisonette the Kenyan suburbs were built on, drawn properly: formal lounge and family room split the ground floor with the dining room and closed kitchen, and four bedrooms — two ensuite — share the upper floor with two more bathrooms. A hip roof keeps it timeless.
- Bedrooms
- 4 (two ensuite + two shared bathrooms)
- Ground floor
- Formal Lounge · Family Room · Dining Room · Kitchen · Guest WC
- Upper floor
- 4 bedrooms · 2 ensuites · 2 bathrooms · landing
- Floor area
- 199.1 m² over two storeys
- Roof
- Hip
- Fits plot
- from 50 × 100 ft (15.2 × 30.5 m)
Elemental BOQ, current rates version, ±10% band — not a quotation.

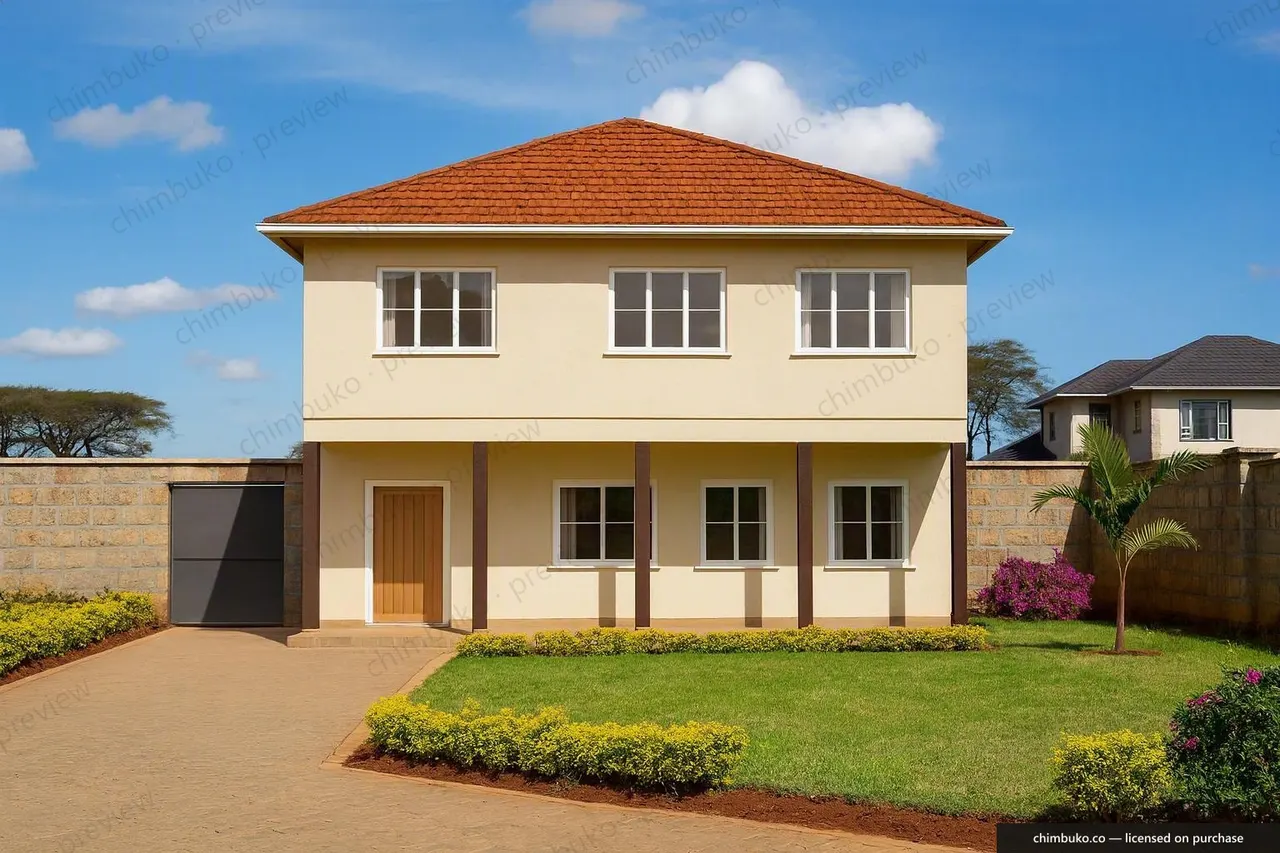

Front view — photoreal render of this exact plan.

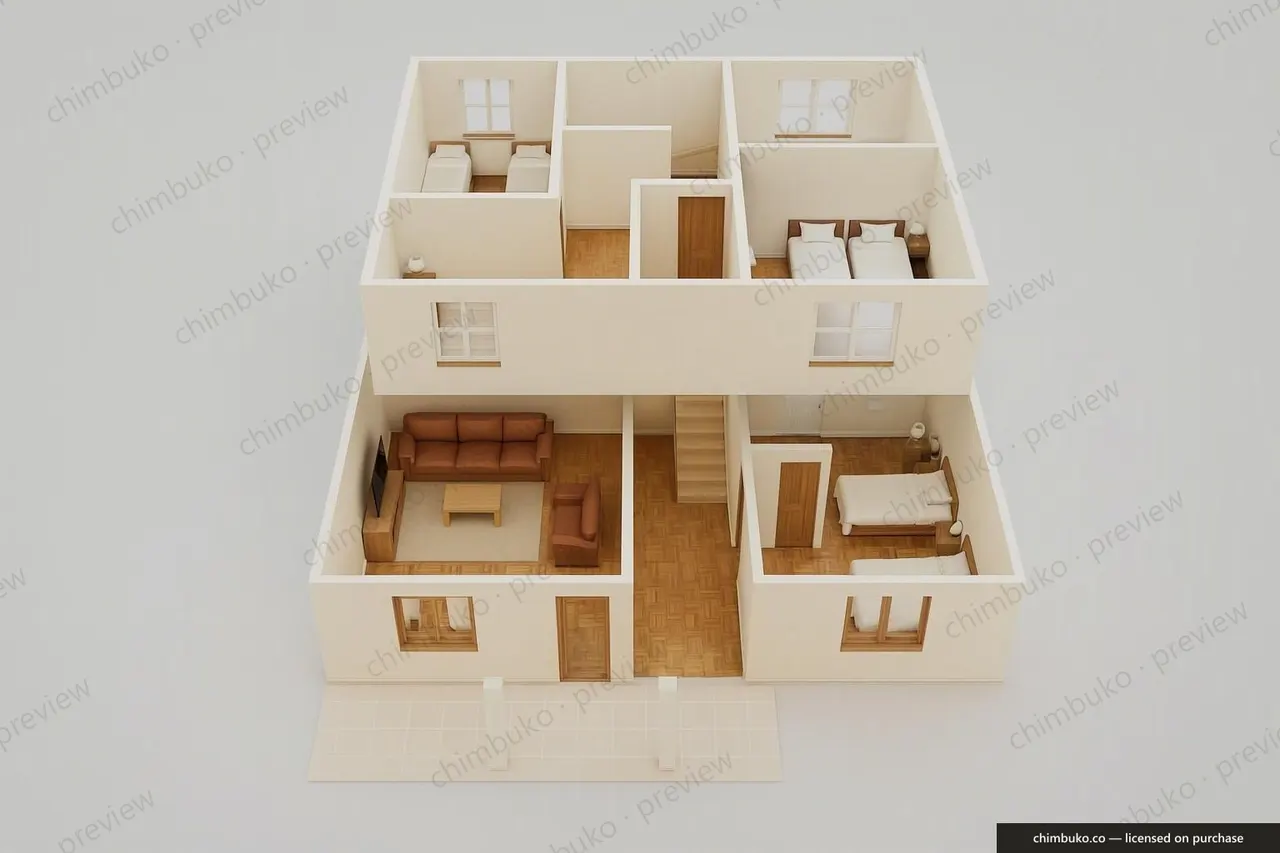

Two-storey 3D cutaway: every room, exactly as drawn.
Presentation floor plans (the Floor-Plan Pack) — obscured here, to scale on purchase.

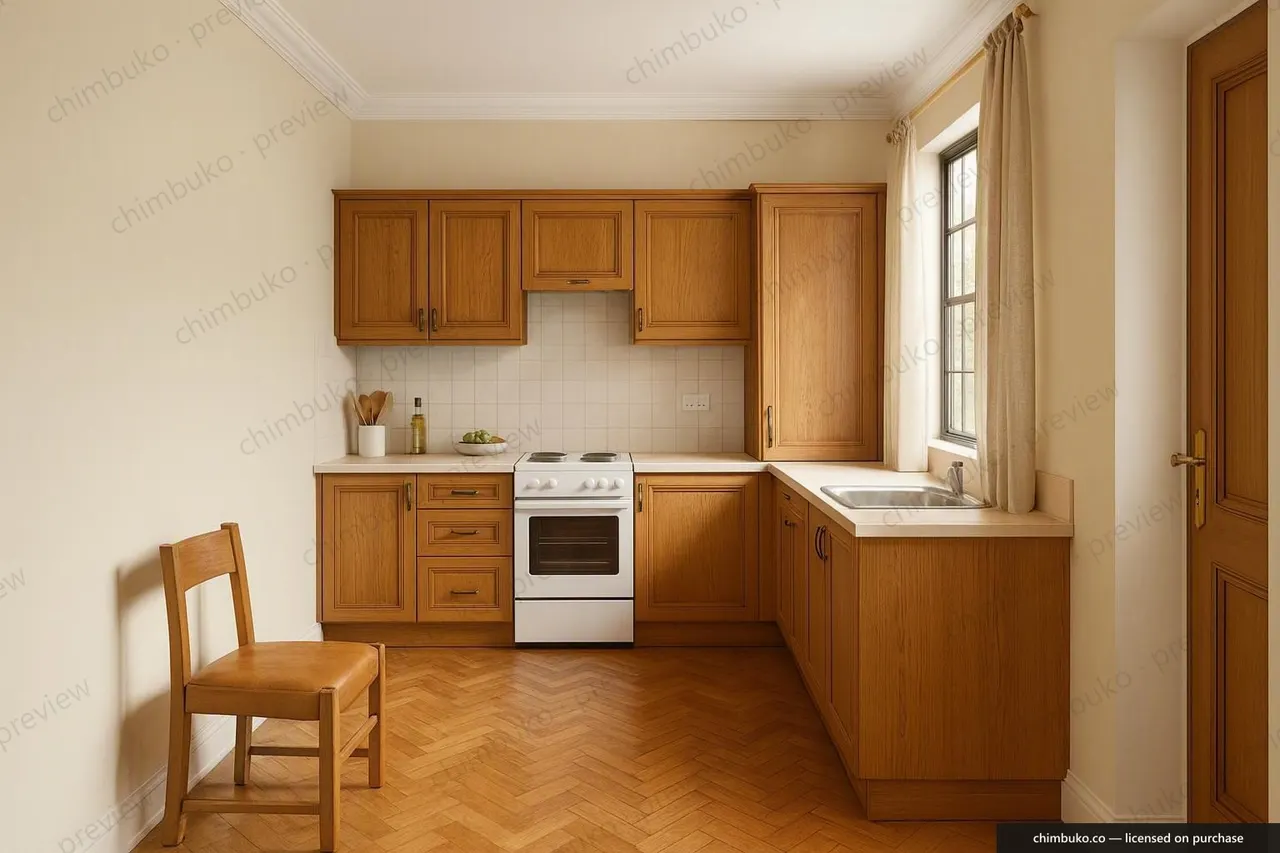

Interiors staged from the actual furniture layout.

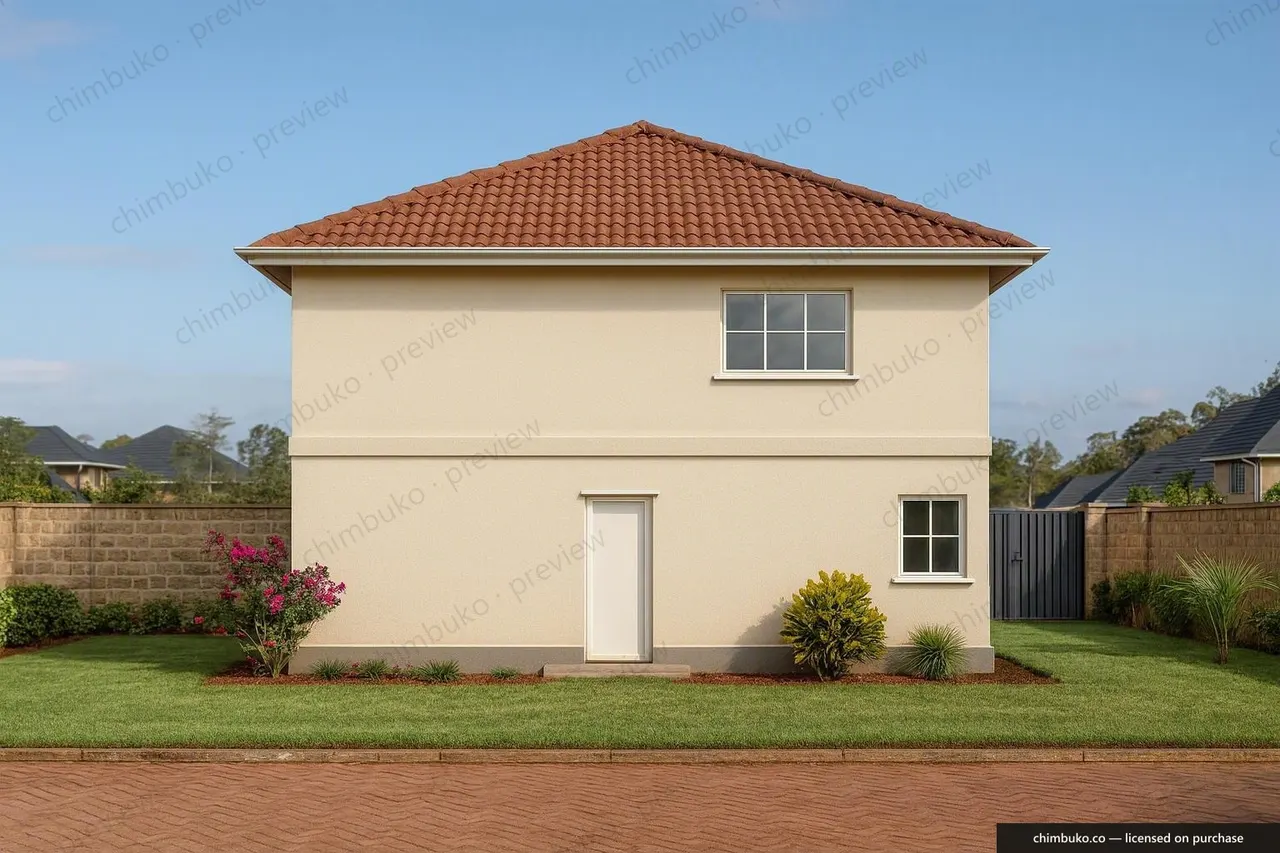

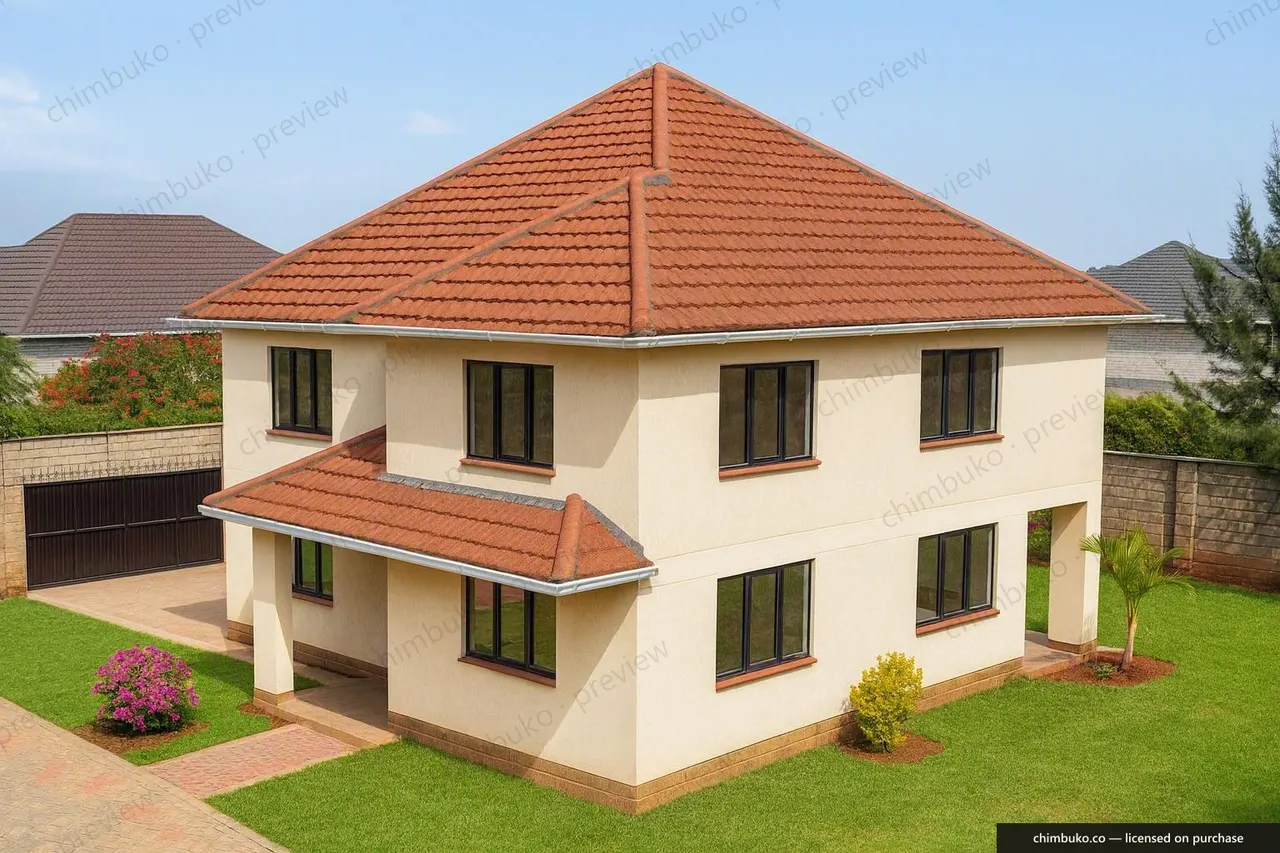

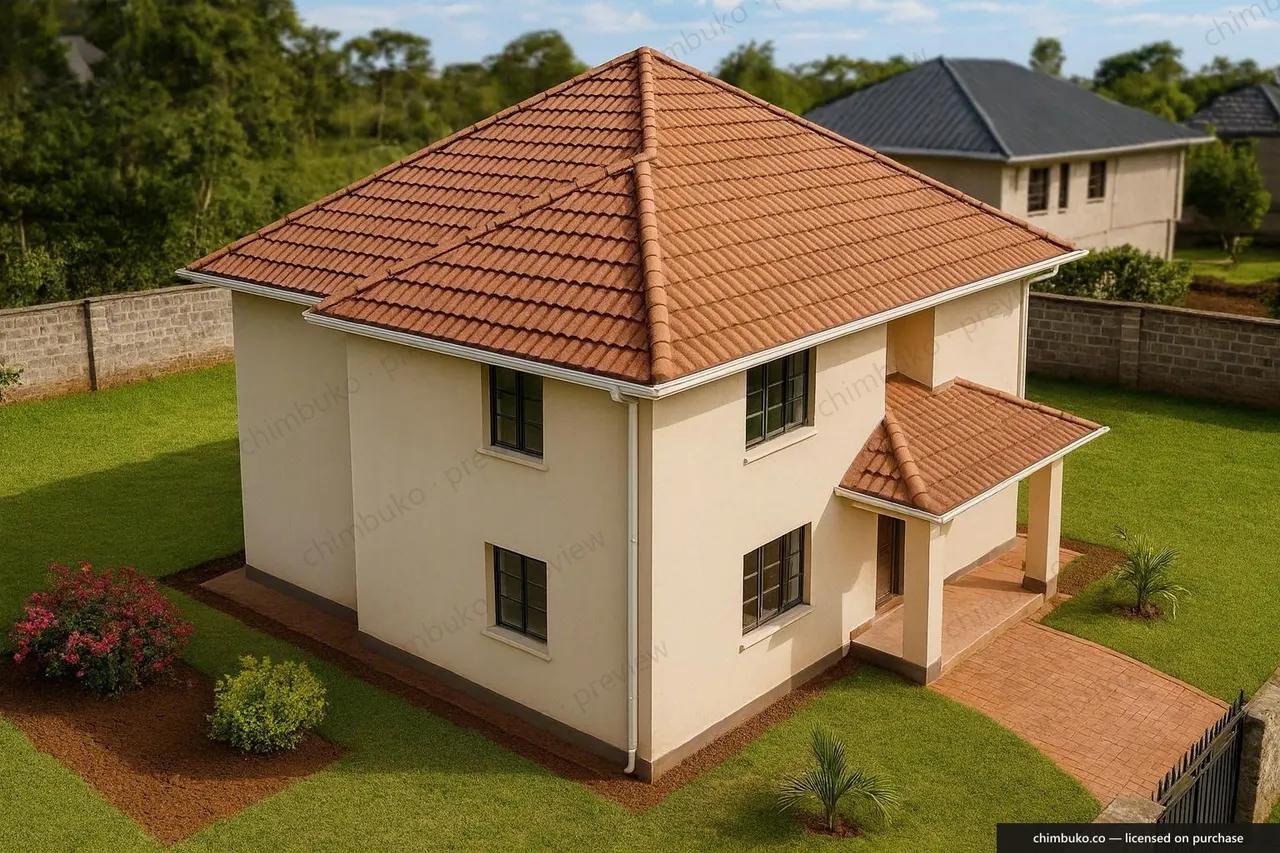

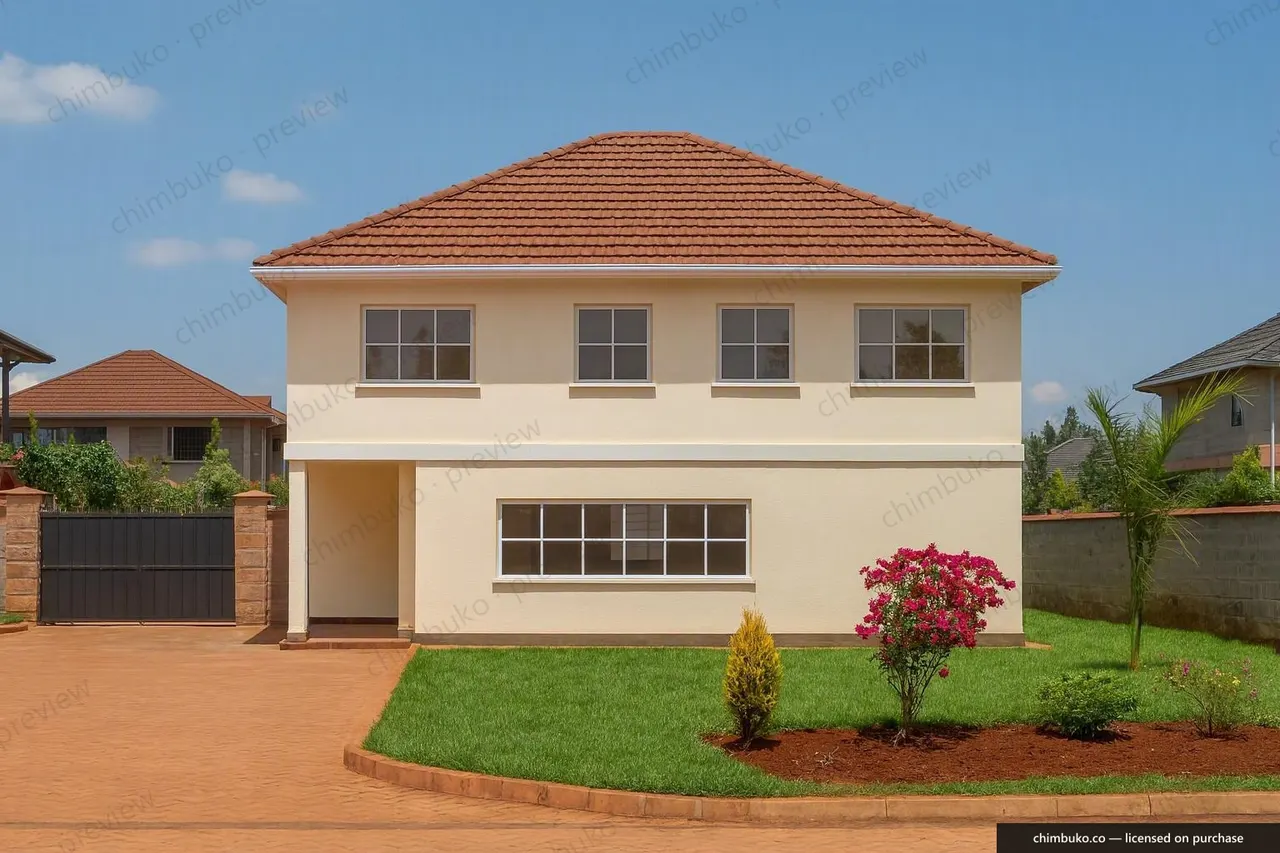

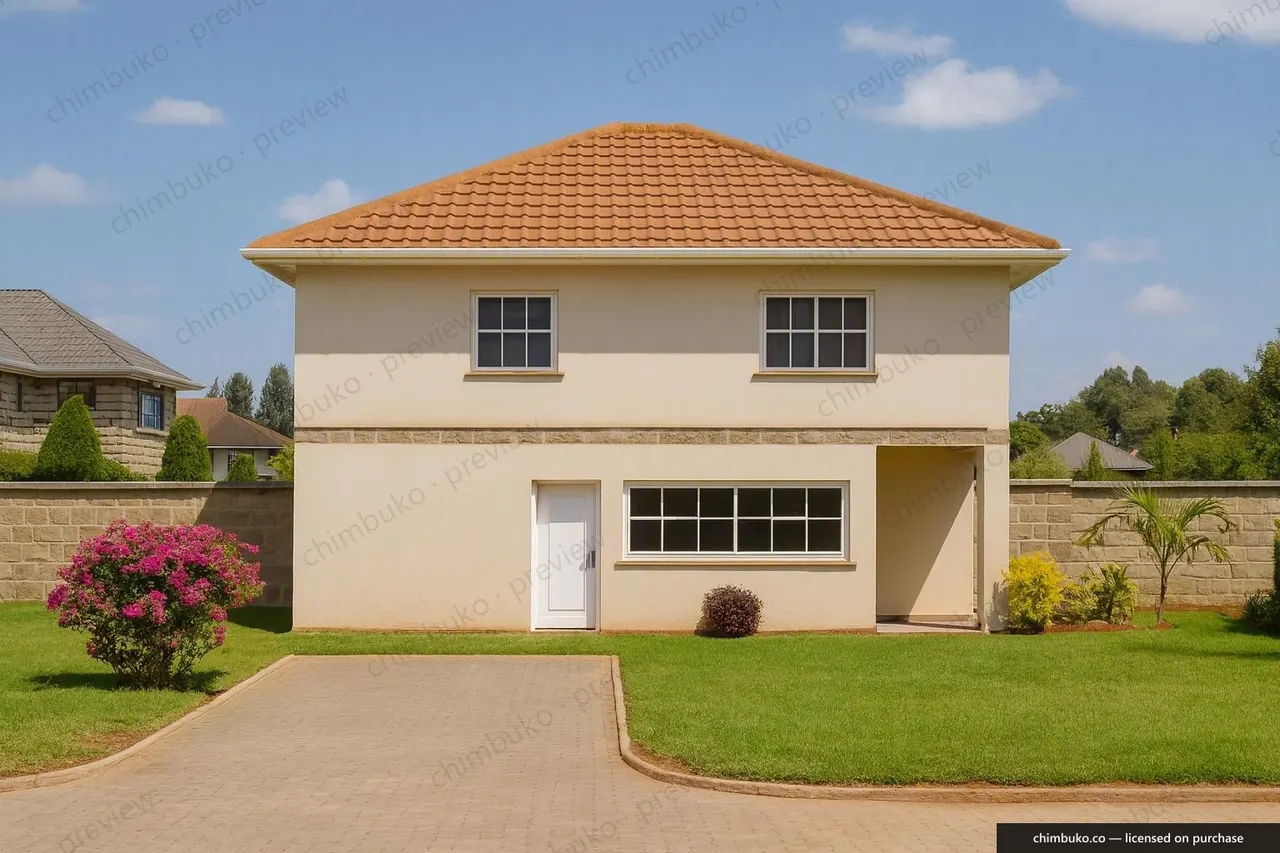

Every side, the roof line, and the working model.
Technical Pack sheets — obscured previews; full sheets arrive with the pack.
Click any drawing to open it full-size. Use ← → to move through the set.
What each package gets you on this plan
Questions about this plan
Can this 4-bedroom maisonette plan change to fit my plot?
Yes — this is a generated plan, not a fixed stock drawing. Brief your actual plot dimensions, gate side and county in chat and the plan regenerates around them, re-checked against Kenyan residential code rules. The first pass and revisions are free to preview.
How much does it cost to build this 4-bedroom maisonette in Kenya?
KES 6.12M – 7.80M for the 199.1 m² set shown here — an elemental BOQ estimate at the current rates version with a ±10% band, not a quotation. The Technical Pack includes the priced Bill of Quantities behind that figure.
What do I get when I buy this plan?
Four packages, each including everything before it: the Floor-Plan Pack at KES 3,500 (presentation floor plan, clean), Plan + Views at KES 6,500 (full PDF set with all nine photoreal views), the Technical Pack at KES 9,500 (electrical and drainage schematics plus the priced BOQ), and the Stamped Set at KES 29,500 (BORAQS-registered architect's stamp, printed sets and DXF). All prices are VAT-inclusive.
Can I submit this plan for county approval?
With the Stamped Set, yes: a BORAQS-registered architect reviews the drawings and signs as architect of record before stamping. Until that review, every sheet is marked schematic pre-design — counties require the stamp to accept a submission.
Make this plan mine
Want a carport or a DSQ in the compound? Brief it — the plan regenerates around you.
